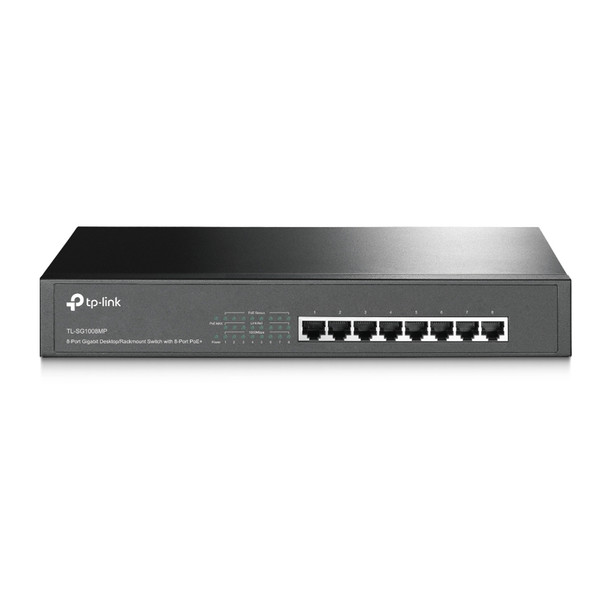

TP-LINK TL-SG1008MP network switch Unmanaged Gigabit Ethernet 10/100/1000 Black TL-SG1008MP
(No reviews yet)
Write a Review
- UPC:
- 6935364085254
- MPN:
- TL-SG1008MP
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
What This Product Does
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Features
8 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
Innovative energy-efficient technology reduces power consumption
Rack mountable with included rack mount bracket
Total PoE power budget up to 126W
Plug and play design, no configuration required
Data transmission
Packet buffer memory
1.5 MB
Forwarding rate
11.904 Mpps
Jumbo frames
16000
MAC address table
4000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Switching capacity
16 Gbit/s
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
153 W
Power over Ethernet (PoE)
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8
Gigabit Ethernet (copper) ports quantity
8
Management features
Switch type
Unmanaged
Design
Number of fans
1 fan(s)
Stackable
No
Product colour
Black
Rack mounting
Yes
Housing material
Metal
Form factor
1U
LED indicators
Yes
Weight & dimensions
Height
44 mm
Width
294 mm
Depth
180 mm
Logistics data
Harmonized System (HS) code
85176990
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS
Network
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Flow control support
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Half duplex
Yes
Auto-negotiation
Yes
10G support
No
Full duplex
Yes
Auto MDI/MDI-X
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 �C
Heat dissipation
592.15 BTU/h
Operating relative humidity (H-H)
10 - 90
Storage relative humidity (H-H)
5 - 90
Storage temperature (T-T)
-40 - 70 �C
Performance
Maximum cable length
100 m
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply included
Yes
Power source
AC/PoE
Power consumption (max)
173.65 W
Packaging data
Package height
80 mm
Cables included
AC
Package depth
400 mm
Package width
250 mm
Package type
Box
Rack mount kit
Yes
Package weight
2.11 kg
User guide
Yes
View AllClose
