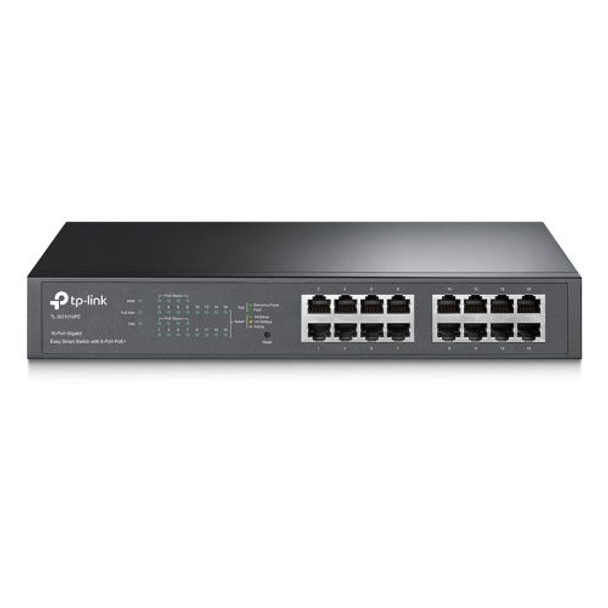

Tp-Link TL-SG1016PE 16-Port Gigabit Easy Smart Desktop/Rackmount Switch 8-P TL-SG1016PE

16 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration




What This Product Does
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.



How This Product Works
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.



Overload Arrangement
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 110W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.



Port Priority Function
*Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port F > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 120W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.



Easy To Use
TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.




Specification

Rackmountable: Yes
Management: Smart
Number of Ports: 16
Data Transfer Rate: 10/100/1000 Mbps
Jumbo Frame: 9KB
Interface(s): 16 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
PoE Ports (RJ45): Standard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W
Bandwidth:
Standards and Protocols: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1q IEEE 802.1p
Switching Capacity: 32Gbps
LED:
Power Supply: 100-240VAC 50/60Hz / PoE
Dimensions: 294 x 180 x 44 mm
Transfer Method:
Mac Address Table: 8K
Port Forwarding:
Packet Forwarding Rate: 23.8Mbps
Advanced Functions: See Overview
Quality of Service: Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
Layer Features: L2 Features:
IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN: Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Access Control:
Security:
Management: Web-based GUI
Easy Smart Configuration Utility
.:
Environment (℃): Operating Temperature: 0C
40C (32F
104F)
Storage Temperature: -40C
70C (-40F
158F)
Operating Humidity: 10%
90% non-condensing
Storage Humidity: 5%
90% non-condensing
Package Contents: TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
Package Type: Retail
Package Weight: 2.5000 kg
Warranty: Limited Lifetime
#Hide#POE: Yes
