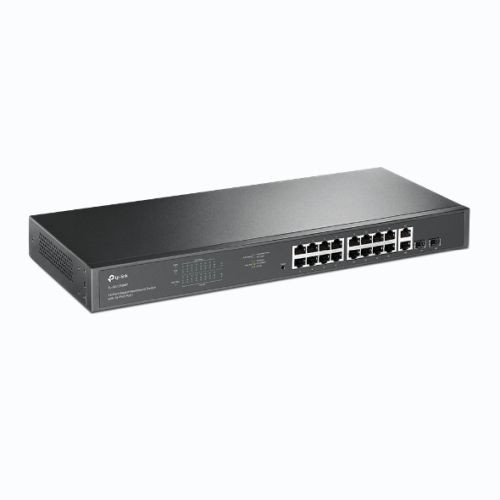

Tp-Link TL-SG1218MP 18-Port Gigabit Unmanaged Poe+ Rackmount Switch 16-Port TL-SG1218MP

18-Port Gigabit Rackmount Switch with 16 PoE+

16x gigabit PoE+ RJ45 ports, 2x gigabit non-PoE RJ45 ports, and 2x combo gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
Working with IEEE 802.3af/at compliant PDs
Plug and play, with no configuration and installation needed
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50C)






Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16x gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50C) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. *PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

DescriptionSpecification

Rackmountable: Yes
Management: No
Number of Ports: 18
Data Transfer Rate: 10/100/1000 Mbps
Interface(s): 16 x PoE+ gigabit RJ45 ports
2 x gigabit non-PoE RJ45 ports
2 x combo gigabit SFP slots
PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1–16
PoE Power Budget: 250 W
Standards and Protocols: "IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p"
Switching Capacity: 36 Gbps
Power Supply: "100–240 VAC, 50/60 Hz

Max Consumption:
21.4 W (220/50 Hz. no PD connected)
286.64 W (220/50 Hz. with 250 W PD connected)"
Dimensions: 440 x 180 x 44 mm
Mac Address Table: 8K
Packet Forwarding Rate: 26.78 Mbps
Jumbo Frame: 10 KB
Advanced Functions: See Overview
Quality of Service: 802.1p/DHCP QoS
Security: Physical security lock
Management: -
Environment: Operating Temperature: 0–50 °C (32–122 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents: TL-SG1218MP
Installation Guide
Power Cord
Rackmount Kit
Rubber Feet
Package Type: Retail
Package Weight: 0.0000 kg
Warranty: Limited Lifetime
#Hide#POE: Yes
