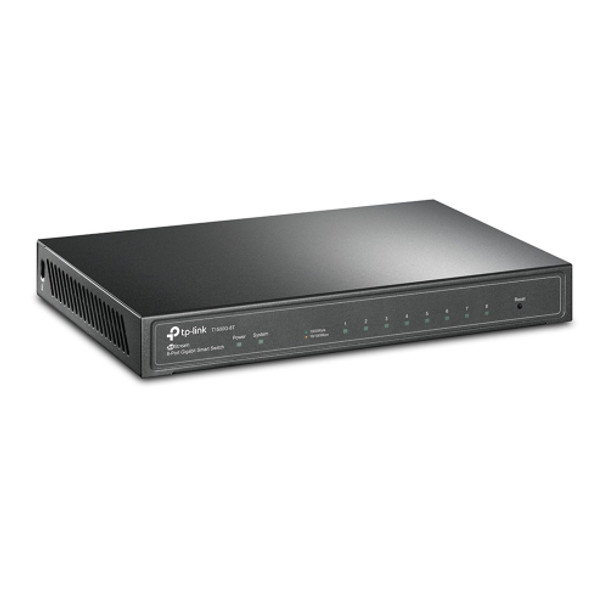

Tp-Link TL-SG2008 8-Port Gigabit Easy Smart Managed Switch Robust Security SG2008

JetStream 8-Port Gigabit Smart Switch

Full Gigabit Ports: 8x gigabit RJ45 ports provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

DescriptionSpecification

Rackmountable: No
Management: Smart
Number of Ports: 8
RJ45 Data Transfer Rate: 10/100/1000 Mbps
Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
PoE Ports (RJ45): -
Bandwidth: 16 Gbps
Standards and Protocols: "IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x"
Power Supply: 12 VDC/1 A External Adapter or
Obtain Power from PoE Source
Dimensions: 209 x 126 x 26 mm
Mac Address Table: 8K
Packet Forwarding Rate: 11.9 Mpps
Jumbo Frame: 9 KB
Advanced Functions: See Overview
Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Storm Control
Layer Features: L2 and L2+: IP Interfaces
Static Routing
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED
VLAN: VLAN Group
Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN
Security: AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management - HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC based access control
Management: "Web-based GUI
CLI through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log"
Environment: Operating Temperature: 0C
40C (32F4F)
Storage Temperature: -40C
70C (-40F8F)
Operating Humidity: 10%
90% non-condensing
Storage Humidity: 5%
90% non-condensing
Package Contents: TL-SG2008
Power Adapter
Installation Guide
Rubber Feet
Package Type: Retail
Package Weight: 0.0000 kg
Warranty: Limited Lifetime
#Hide#POE: No
