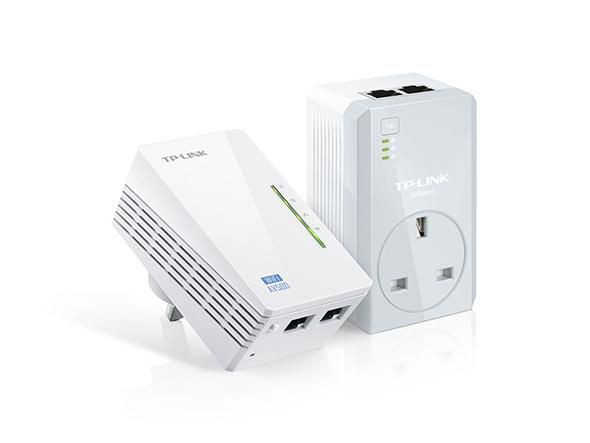

TP-Link TL-WPA4226 KIT Av500 Powerline Wi-Fi Kit TL-WPA4226 KIT

What This Product Does

TP-LINK�s TL-WPA4226KIT AV500 Powerline WiFi Kit extends your Internet connection to every room of the house through your home�s existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button which can automatically extend your router�s wireless signal, making it easy to realize seamless roaming within your home network. What�s more, TL-PA4020P has an integrated power socket, which allows an additional device or power bar to be connected to the adapter as though it were a normal wall socket.

One Touch Super Range Extension

With a Wi-Fi Clone Button enabling Super Range Extension, the TL-WPA4220 can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After pressing the button, you can place the powerline extender anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.

Up to 500Mbps - Ideal for HD Video Streaming

With advanced HomePlug AV technology, TL-WPA4226KIT provides you with stable, high-speed data transfer rates of up to 500Mbps on a line length of up to 300 meters. It is a great choice for a whole home solution to connect all network compatible devices - from computers, game consoles to set-top boxes for IPTV to printers and NAS hard drives.

Extend Wi-Fi Coverage to Every Room

With wireless speeds of up to 300Mbps, you can effortlessly extend your Wi-Fi network via the existing powerline and broadcast a wireless signal to share with all your Wi-Fi enabled devices in another area of your home or office.

Extra Power Socket for Additional Devices

With TL-PA4020P�s integrated power socket, the new TL-WPA4226KIT provides real convenience for your home network. The integrated power socket allows an additional device or power bar to be connected to the adapter as though it were a normal wall socket. This ensures that even with the TL-PA4020P plugged in, no power outlet is going to waste.

Plug and Play

You can set up a hassle-free powerline network within minutes with TP-LINK�s powerline adapters, just plug in and play. Also, the adapters� �Pair� buttons can be utilized for securing or managing multiple powerline adapters in your home powerline network.
1. Plug one Internet connected adapter into a nearby power outlet.
2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable or Wi-Fi, and you're done!

*Recommended: Press the pair buttons for network security and data encryption.

Design



Antenna type



Internal


Certification



CE, FCC, RoHS


LED indicators



LAN, PLC, Power, WLAN


Product colour



White


Logistics data



Harmonized System (HS) code



85171800


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.59 kg


Packaging content



Cables included



LAN (RJ-45)


Package type



Box


Quantity per pack



2 pc(s)


Quick installation guide



Yes


Performance



Built-in power socket



Yes


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100


Ethernet LAN interface type



Fast Ethernet


Maximum data transfer rate



600 Mbit/s


Maximum operating distance



300 m


Modulation



OFDM


Networking standards



IEEE 1901, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u


Plug and Play



Yes


PowerLine standard



HomePlug AV


Security algorithms



128-bit AES, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK


Top Wi-Fi standard



Wi-Fi 4 (802.11n)


Wi-Fi



Yes


Wi-Fi standards



802.11b, 802.11g, Wi-Fi 4 (802.11n)


WLAN data transfer rates supported



600


Product dimensions



Net Weight (Product, kg)



0.45 kg


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Y, Yes


Windows operating systems supported



Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


TP-Link


Warranty



1 Year(s)
