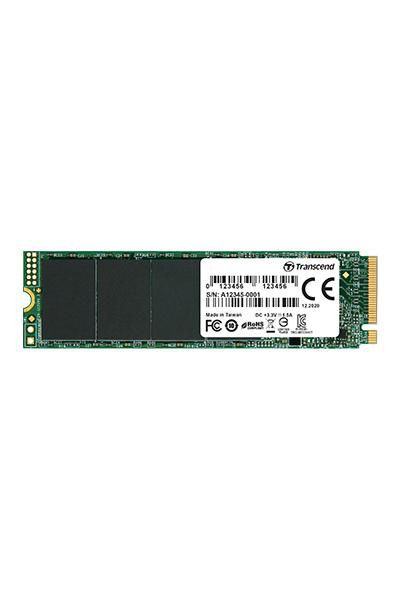

Transcend TS512GMTE112S 112S M.2 512 Gb Pci Express TS512GMTE112S

Transcend's PCIe SSD 110S/112S utilizes the PCI Express® Gen3 x4 interface supported by the latest NVMe™ standard, to unleash next-generation performance. The PCIe SSD 110S/112S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Powered by 3D NAND flash memory, the PCIe SSD 110S/112S gives you not only fast transfer speeds but unmatched reliability.

Compelling performance for high-end applications
Transcend's PCIe SSD 110S/112S follows NVMe 1.3 and utilizes the PCIe™ Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously, resulting in compelling performance of up to 1,700MB/s read and 1,400MB/s write.

Understanding the PCIe interface
PCIe (or PCI Express®) is a much faster interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices over one or more lanes consisting of one transmit and one receive serial interface in each lane, meaning it can better fulfill new performance requirements.

Understanding the NVMe standard
NVMe (or NVM Express®) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency.

3D expansion to break through limits
Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.

Better endurance, higher reliability
Transcend's PCIe SSD 110S/112S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 110S/112S guarantees superior endurance and stability for high-end applications.

Transcend SSD Scope software
To keep your Transcend SSD running fast and error-free, Transcend's SSD Scope software application is available for download free of charge. Monitor your SSD's health status with S.M.A.R.T. technology, enable the TRIM command for optimum write speeds, keep your SSD's firmware up-to-date, and migrate data from your original drive to a new SSD with just a few clicks.

Guaranteed quality
To ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.

Features



Certification



FCC, BSMI, KC, RCM


Component for



PC


Hardware encryption



No


Interface



PCI Express 3.0


Linux operating systems supported



Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.3, Kernel 4.6.4


Mean time between failures (MTBF)



2000000 Hour


Memory type



3D NAND


NVMe



Yes


NVMe version



1.3


PCI Express interface data lanes



x4


Random read (4KB)



160000 IOPS


Random write (4KB)



140000 IOPS


Read speed



1700 MB/s


S.M.A.R.T. support



Yes


SSD capacity



512 GB


SSD form factor



M.2


TBW rating



200


Windows operating systems supported



Windows 10, Windows 7, Windows 8


Write speed



900 MB/s


Logistics data



Harmonized System (HS) code



84717070


Operational conditions



Maximum operating temperature



70 °C


Operating temperature (T-T)



0 - 70 °C


Package dimensions



Gross Weight (Package, kg)



0.91 kg


Power



Operating voltage



3.3 V


Product dimensions



Net Weight (Product, kg)



0.7 kg


Product Depth



8 cm


Product Height



0.22 cm


Product Width



2.2 cm


Technical details



Sustainability certificates



CE


Vendor information



Brand Name


Transcend


Warranty



1 Year(s)
