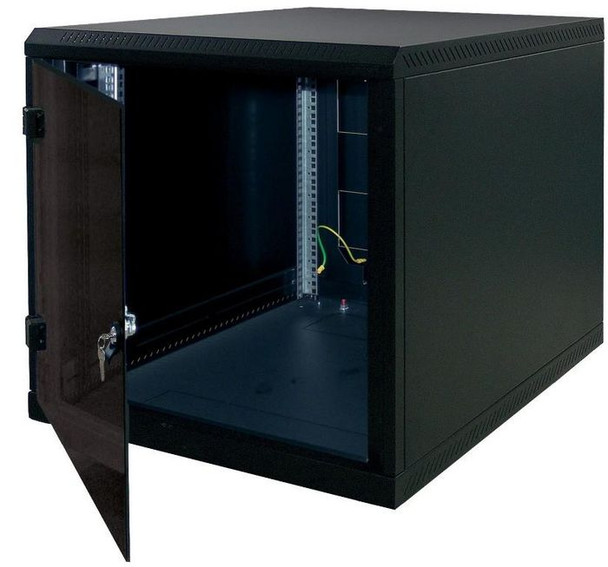

Triton RBA-06-AS4-BAX-A1 Rack Cabinet Wall Mounted RBA-06-AS4-BAX-A1

One-sectioned welded wall cabinet.

IP30, capacity 30 kg.

High quality workmanship and up-to-date technology ensure a perfect look of the cabinet.
The cabinet has fully glass door in standard. It can be steel or perforated if required.
The hinge system allows the door to open almost 180�. The door can be easily removed and re-mounted to change the direction of opening.

DOOR LOCK

It enables an easy and quick access into the cabinet.

ADJUSTABLE VERTICAL RAILS

One pair of vertical 19� rails is freely adjustable in any depth of the cabinet. This simplifies mounting of devices and organisation of connecting cables.

BREAKOUT-TYPE BLANKING PANELS

Cable openings covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet. Use a plastic frame and a blanking panel with a brush, that are parts of the cabinet supply, to seal the cabinet opening against dust penetration.

VENTILATION

The RBA type A6 has 6 break-out blanking panels for the installation of ventilation units RAx-CH-X2x-X1 or fans RAX-CH-X07-X9 (up to 3 in top and 3 in bottom part of the cabinet). The RBA cabinet provides with a possibility to install an equipment, which has never been cooled enough before. Such equipment could be only installed into free standing cabinets before.

Features



Certification



IP30


Key lock



Yes


Material



Glass, Steel


Maximum weight capacity



30 kg


Product colour



Black


Type



Wall mounted rack


Package dimensions



Gross Weight (Package, kg)



143 kg


Product dimensions



Net Weight (Product, kg)



110 kg


Product Depth



39.5 cm


Product Height



37 cm


Product Width



60 cm


Vendor information



Brand Name


Triton


Warranty



1 Year(s)
