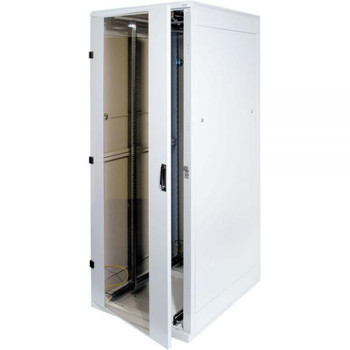

Triton RDE-42-A81-CCX-A1 Rack Cabinet 42U Freestanding RDE-42-A81-CCX-A1

Welded server cabinet prepared for the installation of independent air-conditioning units, IP54, capacity 1800 kg

Loading capacity 1800 kg

The RDE data cabinet has a reinforced construction and it is made of thicker material. Also 19� vertical rails are designed for a higher loading capacity. A version with depth over 800 mm has a central pair of vertical rails as a standard solution.

Protection against dust and humidity IP54

All the doors and covers are equipped with a sealing that ensures protection against dust penetration and humidity. For more information see the section Active Cooling.

Wider body rails

Wider rails in the body of a cabinet are intended for an additional installation of 19� power management panels that afterwards do not occupy space within the cabinet. Thanks to this smart solution it does not block sliding servers even within the 600 mm cabinet type.

Server cabinet with an IP54 protection

The RDE cabinets are primarly intended for an installation of servers and active devices parallelly with a Triton A/C units. Air conditioning unit is necessary to install only to data cabinets with a high IP protection for a correct function.

A/C units

It is possible to install the roof A/C unit model ETE on the RDE data cabinet to manage the temperature inside of the cabinet. For such installation a special adapter is required. Adapter must correspond with an A/C unit type and also with requested air flow direction (along side panels or front/rear). A proper A/C unit must be selected by following information about thermal heat output of installed equipment, surrounding temperature with respect to humidity inside of the data cabinet. Our specialists are at your disposal. When A/C unit is installed the IP protection rating lower down to IP20.

Cable entries

All cable entries must be properly sealed especially against the dust and humidity, which could in air-conditioned area start condensing and could also damage installed equipment. Furthermore it could start freezing inside of the A/C unit which can lead to its break down. A blanking panel with sealed cable grommets is part of the cabinet supply.

STRENGTHENED VERTICAL RAILS

Vertical rails are made from thicker material and differ from standard type thanks to its shape as well.

PLACING IN CABINET ROW

Cabinet RDE can be placed in the line with standard cabinets without any problem.

Features



Castor wheels



No


Frame type



Closed


Front door construction



Glass


Front door key lock



Yes


International Protection (IP) code



IP54


Key lock



Yes


Material



Glass, Steel


Maximum weight capacity



1800 kg


Product colour



Grey


Rack capacity



42U


Removable side panels



Yes


Side panel construction



Steel


Side panels included



Yes


Type



Freestanding rack


Package dimensions



Gross Weight (Package, kg)



143 kg


Product dimensions



Net Weight (Product, kg)



110 kg


Product Depth



100 cm


Product Height



197 cm


Product Width



80 cm


Vendor information



Brand Name


Triton


Warranty



1 Year(s)


Weight & dimensions



Inner height



186.8 cm


Inner width



68.7 cm
