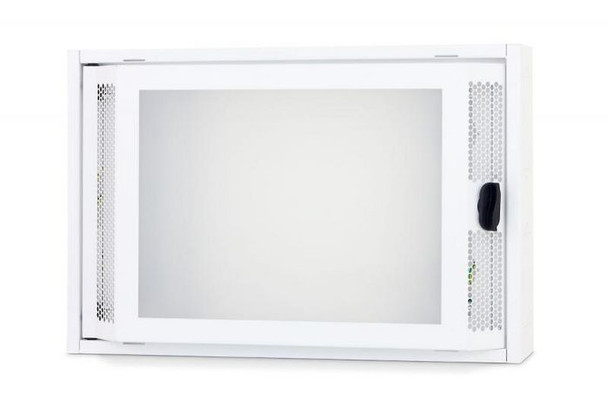

Triton RNA-02-A51-YXX-X1 Electrical Enclosure Steel RNA-02-A51-YXX-X1

Data module of hybrid cabinets for home distribution systems. IP20 / IK05
Data cabinet is designed to accomplish all home cable distribution and installation of active elements. It is possible here to connect Internet, TV and satellite distribution systems, audio, as well as traditional telephone and ADSL connections. Plastic door panels and the entire structure support installation of WiFi devices. Cable entries on the top, bottom and both sides of the cabinet allow it�s mounting into larger assemblies with other cabinets of this series including power distribution cabinets. The doors of the cabinet are raised upward to ensure the necessary bending radius of the cables, including fiber cables.Perforation on the sides helps cooling of installed active elements. Installation of equipment with self-tapping screws on the inner plastic plate is quick and easy. Cabinets are supplied in modular height where one module occupies 166 mm. Power distribution cabinets of this series are in these modules as well. Width and depth of the cabinet is the same for all heights. The cabinet is universal for mounting on the wall or under the wall plaster. For installation in a recess in the wall is available a cover frame. Thanks to the modularity can be used for example 2 modules high data part and 1 module electro, all covered with 3 modular frame.

Swing side panels
Side panels on both sides of the cabinet are folded for easy installation of mounted components. All removable and rotating parts are connected according to the standard.

Data distribution
For the installation of data and communication distribution are prepared Keystone Standard modules in which easily fit any cables.

Power supply
On the opposite side of the data distribution system is preparation for the installation of the power system 230 V. According to the size of the cabinet there is a prepared opening for mounting classic sockets (with protective plastic box) and / or 10� 1U mounting opening extended for the possibility to install up to three common sockets.

Door construction
Plastic door panels and the entire structure support installation of WiFi devices.

Package dimensions



Gross Weight (Package, kg)



0.65 kg


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



11 cm


Product Height



33.3 cm


Product Width



50 cm


Technical details



Housing material



Steel


International Protection (IP) code



IP20


Lockable



Yes


Locking type



Hinge


Number of doors



1 door(s)


Product colour



White


Vendor information



Brand Name


Triton


Warranty



1 Year(s)
