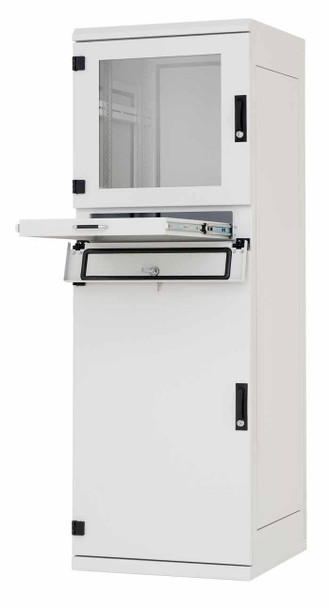

Triton RPA-37-A66-CAX-A1 Rack Cabinet Freestanding Rack RPA-37-A66-CAX-A1

Cabinet for industrial environment intended for installation of computers or
control components of technological units
WE PRODUCE THE CABINET IN TWO MODIFICATIONS:
RPE with IP 54 protection suitable especially for dusty environment.
RPA with IP 30 protection which has a perforation in the base and top part including cable entries and preparations


The RPE cabinet is without a perforation, all the doors and covers are equipped with a sealing that ensures protection against dust penetration and humidity.

RPE cabinet of 600 mm width and depth has three independently lockable sections. The upper and bottom section are locked by a Triton handle-lock; the slid-out middle section, intended for a keyboard and a mouse, has a single point door lock. All sections in the standard version are operated by the same key.

Vertical 19� rails can be adjusted freely in any depth of the cabinet. This simplifies mounting of the device and configuration of connecting cables.

Supply includes:Key - front door 2x
Key - rear and side panels 2x
Screw M6x10 16x
Plastic washer 16x
Captive nut M6 16x
Adjustable feet 4x
Nut M10 4x


Material:Steel sheet
Safety hardened glass 4 mm thick

- 19� free-standing cabinet with protection IP 54 (RPE), IP 30 (RPA)
- Cabinet components include 4 sliding vertical rails for installing the device
- Cabinet construction:� welded steel frame with removable side panels
� door glass: safety hardened, thickness 4 mm
- These cabinets are intended for installation of data and telecommunication devices and their distribution systems and control elements of technological units
- The frame of the cabinet and all the removable parts (side and rear covers, doors�) are connected with earthing cables that have to be properly fixed and inserted into connectors during all the time when using the cabinet.
- There is one M8 screw placed on the bottom part of the cabinet as an earthing main point.
- Cable entry openings placed in the top and in the bottom part of the cabinet are ensured by demountable blanking panels (RPE).
- Cable openings covered with breakout-type blanking panels are placed in the top and the bottom part of the cabinet (RPA).

Features



Type



Freestanding rack


Other features



Dimensions (WxDxH)



600 x 600 x 1750 mm


Package dimensions



Gross Weight (Package, kg)



143 kg


Product dimensions



Net Weight (Product, kg)



110 kg


Vendor information



Brand Name


Triton


Warranty



1 Year(s)


Weight & dimensions



Size (imperial)



19 "
