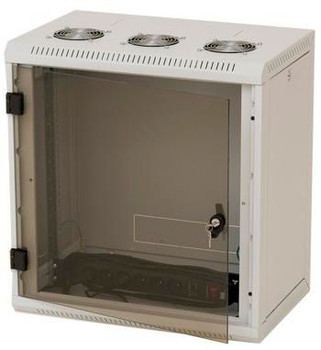

Triton RUA-09-AS6-CAX-A1 Rack Cabinet 9U Wall Mounted RUA-09-AS6-CAX-A1

RUA wall-mounted cabinet is one of the one-sectioned wall-mounted cabinets.
Thanks to removable side panels, installed devices are very easily accessible

Cabinet has a robust welded construction. High quality processing and the up-to-date technology ensure
a perfect look of the cabinet and maximal loading capacity of 30 kg.
Cabinet door is glass standardly but it can be steel or perforated as required.
The hinge system enables almost 180� wide opening of the door. Doors can be easily removed.

REMOVABLE SIDE PANELS:Removable side plates enable access to the installed devices from the rear side without demounting.

Blanking panels for installation of cooling ventilators:RUA has now in its all versions six break-out blanking panels for installation of cooling ventilators RAB-CH-X30-X1 (three are in the upper and three in the lower part of a cabinet). RUA cabinet enables installation of devices that could not be cooled sufficiently in wall-mounted cabinets in the past and therefore had to be installed into free-standing cabinets only.

ADJUSTABLE VERTICAL RAILS:One pair of vertical 19� rails is freely adjustable in any depth of the cabinet. This simplifies mounting of the device and organisation of connecting cables.

BREAKOUT-TYPE BLANKING PANELS:Cable openings covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet. Use a plastic frame and a blanking panel with a brush, that are parts of the cabinet supply, to seal the cabinet opening against dust penetration.

Features



Product colour



White


Rack capacity



9U


Type



Wall mounted rack


Package dimensions



Gross Weight (Package, kg)



143 kg


Product dimensions



Net Weight (Product, kg)



110 kg


Product Width



60 cm


Vendor information



Brand Name


Triton


Warranty



1 Year(s)


Weight & dimensions



Size (imperial)



19 "
