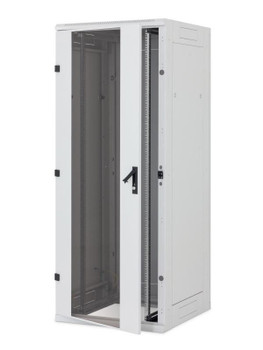

Triton RYA-45-A61-CAX-A1 Rack Cabinet 45U Freestanding RYA-45-A61-CAX-A1

Free-standing cabinet RYA

Assembled cabinet easily demountable, IP 20, loading capacity 1200 / 1500 kg
Installing of the skeleton
by threading parts and screws. Cold-rolled steel 1,3 mm.
Triton handle
Just by replacing the plastic inlet (is not part of supply) you can choose classic or half-cylindric lock. Patent: PUV 2013-27443.
Wider body rails
Wider rails in the body of a cabinet are intended for an additional installation of 19� power management panels, which afterwards do not occupy space within the cabinet. Thanks to this smart solution of gripping, it does not block sliding servers even for the 600 mm cabinet type. In addition to this solution the A5 version (at the end of the cabinet code) is characterized by break-out blanking panels for possible cable input and management in between neighbouring cabinets.
Fringe edge
Supply includes 1 m.
Perforated skeleton rails
Square perforation for the captive nuts alongside whole height of the rail in the unit span allows additional accesory installation.
Laser unit marking of vertical rails
steel plate 2 mm
Flex frame
Four-point fixing allows installation of sliding rails in a spon of 19�, 21� and 23� for cabinets 800 mm wide. Cold-rolled steel 2,5 mm.
Bonding
All deteachable parts are bonded in accordance to appropriate standard.

Features



Key lock



Yes


Product colour



Grey


Rack capacity



45U


Type



Freestanding rack


Package dimensions



Gross Weight (Package, kg)



143 kg


Product dimensions



Net Weight (Product, kg)



110 kg


Product Depth



100 cm


Product Height



210.5 cm


Product Width



60 cm


Vendor information



Brand Name


Triton


Warranty



1 Year(s)


Weight & dimensions



Size (imperial)



19 "
