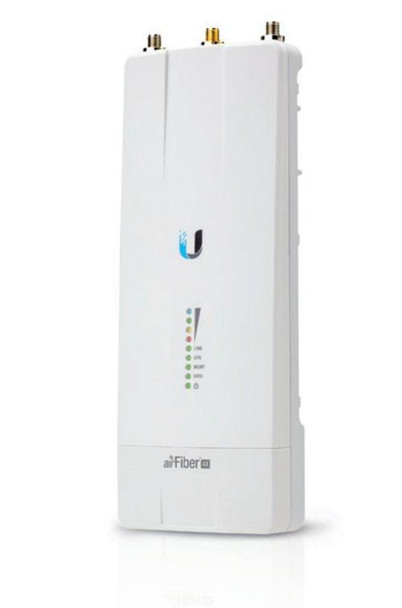

Ubiquiti Networks AF-4X airFiber. 500+ Mbps Backhaul. AF-4X

The airFiber� X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.

Engineered for Performance
Ubiquiti�s INVICTUS� custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.

Deployment Flexibility
The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket�link that uses a RocketDish�RD?5G30/RD?5G34* antenna.

Carrier Backhaul for the World
Deploy the 2.4, 3, 4, 5 or 11 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs � up to 11 different channel sizes available for the AF-2X or AF-3X.

Optimal Operation and Channel Configuration
Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

Certificates



Certification



CE, FCC, IC


Features



LED indicators



Yes


Product colour



White


Network



Ethernet LAN



Yes


Operational conditions



Operating temperature (T-T)



-40 - 55 �C


Package dimensions



Gross Weight (Package, kg)



1 kg


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN



Yes


Power



AC input voltage



24 V


Power consumption (typical)



12 Watt


Product dimensions



Net Weight (Product, kg)



0.35 kg


Product Depth



4.8 cm


Product Height



22.4 cm


Product Width



8.2 cm


Security



Security algorithms



AES


Vendor information



Brand Name


Ubiquiti


Warranty



2 Year(s)


Weight & dimensions



Dimensions (WxDxH)



224 x 82 x 48 mm


Wireless LAN features



Frequency band



4 GHz
