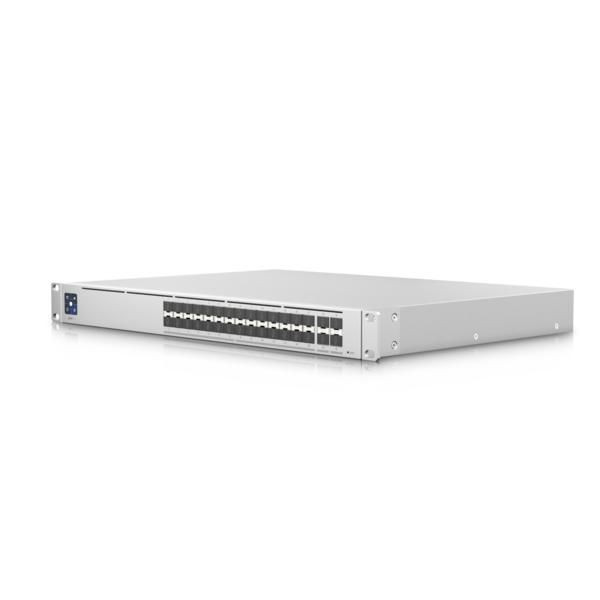

Ubiquiti Networks USW-PRO-AGGREGATION-EU USW-Pro-Aggregation is a USW-PRO-AGGREGATION

Featuring a 1.3� touchscreen, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The USW-Pro-Aggregation is managed through the UniFi controller and mobile App, allowing you to easily build, scale and monitor your enterprise networks.

Data transmission



Forwarding rate



565.44 Mpps


Static route



Yes


Switching capacity



760 Gbit/s


Throughput



380 Mpps


Design



Housing material



Steel


LED indicators



Y, Yes


Number of fans



4 fan(s)


Product colour



Grey


Logistics data



Harmonized System (HS) code



85176990


Management features



Switch layer



L3


Switch type



Managed


Network



10G support



Yes


Link aggregation



Yes


Port mirroring



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



-5 - 40 �C


Package dimensions



Gross Weight (Package, kg)



4.7 kg


Performance



Harmonized System (HS) code



85176990


Ports & interfaces



Basic switching RJ-45 Ethernet ports type



No


Installed SFP+ modules quantity



28


Power connector



DC-in jack


SFP+ module slots quantity



28


SFP28 ports quantity



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


DC input voltage



11.5 V


Input current



2 A


Power consumption (max)



100 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



4 kg


Product Depth



32.5 cm


Product Height



4.4 cm


Product Width



44.2 cm


Security



DHCP features



DHCP server


Vendor information



Brand Name


Ubiquiti


Warranty



2 Year(s)
