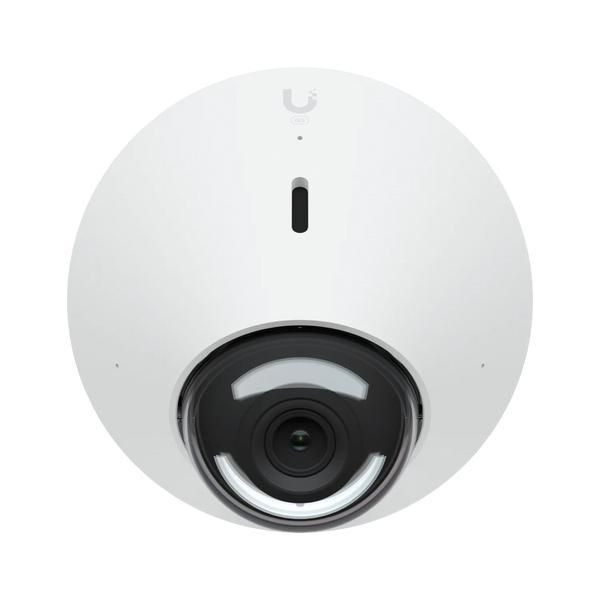

Ubiquiti Networks UVC-G5-DOME UVC-G5-DOME IP security UVC-G5-DOME

Next-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.

Audio



Built-in microphone



Yes


Built-in speaker(s)



Yes


Camera



Camera pan control



Yes


Lens viewing angle, diagonal



134.3 �


Lens viewing angle, horizontal



102.4 �


Lens viewing angle, vertical



71.4 �


Design



Form factor



Dome


Housing material



Aluminium, Polycarbonate (PC), Stainless steel


IK code



IK08


International Protection (IP) code



IPX4


Mounting type



Ceiling/wall


Product colour



White


Image sensor



Number of sensors



1


Sensor type



CMOS


Lens system



Number of lenses



1


Management features



Reset button



Yes


Network



Bluetooth



No


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Wi-Fi



No


Night vision



LED type



IR


Night vision



Yes


Night vision distance



10 m


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



-20 - 40 �C


Package dimensions



Gross Weight (Package, kg)



0.4 kg


Packaging content



Cables included



LAN (RJ-45)


Mounting kit



Yes


Number of cameras



1


Performance



Built-in processor



Yes


Certification



FCC, IC, CE


Connectivity technology



Wired


Placement supported



Indoor & outdoor


Processor model



ARM Cortex-A7


Type



IP security camera


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



AC input voltage



37 - 57 V


Power consumption (typical)



5 Watt


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



0.37 kg


Product Depth



6.42 cm


Storage



Built-in HDD



No


Vendor information



Brand Name


Ubiquiti


Warranty



2 Year(s)


Video



Frame rate



30 fps


Image quality adjustment



Brightness, Colour depth, Contrast, DNR


Maximum resolution



2688 x 1512 Pixels


Noise reduction



Yes


Noise reduction technology



3D noise reduction


Total megapixels



5 MP


Video compression formats



H.264, M-JPEG


Weight & dimensions



Diameter



10.92 cm
