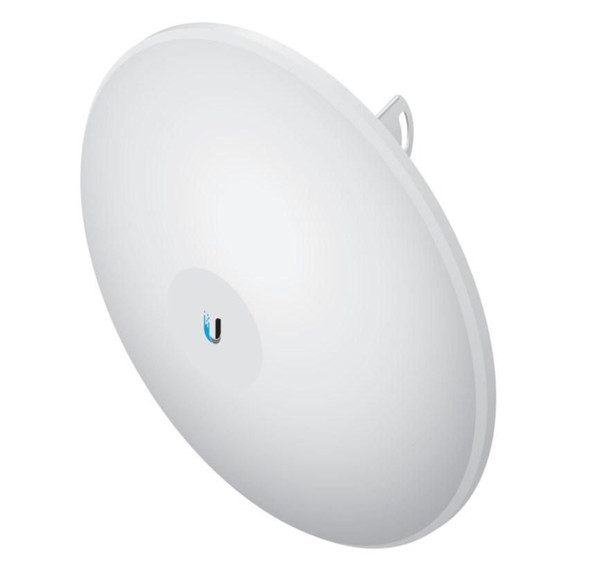

Ubiquiti PBE-5AC-500 airMAX 5 GHz PowerBeam ac PBE-5AC-500

Incorporating a dish reflector design with proprietary airMAX� ac technology, the PowerBeam� ac is ideal for CPE deployments requiring maximum performance.

Integrated Radio Design
Ubiquiti�s InnerFeed� technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Performance Breakthrough
airMAX� ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing
Ubiquiti's airMAX� engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna �Beam� Performance
The form factor of the PowerBeam� ac features the highest gain for its size. The PowerBeam ac�s excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology
Ubiquiti�s airMAX� technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Protective Radome
The PowerBeam� ac PBE-5AC-500 includes a protective radome to shield the radio from nature's harshest elements.

Features



Antenna type



Directional antenna


Certification



FCC, IC, CE


LED indicators



LAN, Power, WLAN


Mounting



Pole


Polarization



Dual polarization


Product colour



White


RoHS compliance



Yes


Survival wind speed



96 kmh


Voltage Standing Wave Ratio (VSWR)



1.5:1


Wind load



264.6


Logistics data



Harmonized System (HS) code



85177100


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 70 �C


Other features



Dimensions (WxDxH)



620 x 620 x 386 mm


Package dimensions (verified)



Depth Verified



61 cm


Gross Weight Verified



6.55 kg


Height Verified



32 cm


Width Verified



61 cm


Performance



Antenna gain level (max)



27 dBi


Built-in processor



Yes


Flash memory



16 MB


Frequency band



5 GHz


Internal memory



128 MB


Internal memory type



DDR2


Processor frequency



720 MHz


Processor model



Atheros MIPS 74Kc


Power



Power consumption (max)



8.5 Watt


Product dimensions



Net Weight (Product, kg)



3.15 kg


Product Depth



31.5 cm


Product Height



52.5 cm


Product Width



52.5 cm


Technical details



Harmonized System (HS) code



85177100


Sustainability certificates



RoHS


Vendor information



Brand Name


Ubiquiti


Warranty



2 Year(s)
