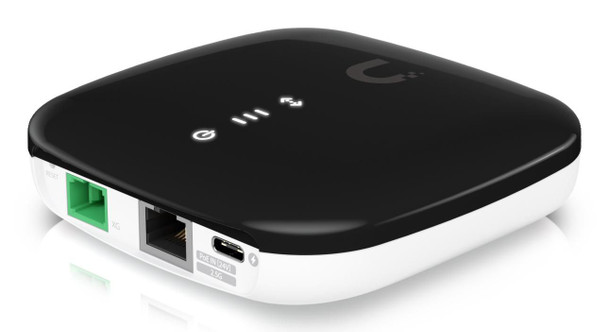

Ubiquiti UISP-FIBER-XG UISP Fiber XG-PON CPE UISP-FIBER-XG

An optical network unit that can deliver 2.5Gbps uplink/10Gbps downlink speeds over distances up to 20 km.

Design



Housing material



Polycarbonate (PC)


Internal



No


LED indicators



Y, Yes


Product colour



Black, White


Management features



Reset button



Yes


Network



Ethernet interface type



2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet


Ethernet LAN data rates



100, 1000, 2500


Maximum data transfer rate



10000 Mbit/s


Operational conditions



Operating relative humidity (H-H)



10 - 95 %


Operating temperature (T-T)



-15 - 45 °C


Package dimensions



Gross Weight (Package, kg)



0.22 kg


Performance



Maximum transfer distance



20000 m


Rx power (max)



-27 dBmW


Rx power (min)



-9 dBmW


Tx power (max)



7 dBmW


Tx power (min)



2 dBmW


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SC/APC


Fiber ports quantity



1


Power



Input current



3 A


Power consumption (max)



6 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.22 kg


Product Depth



10 cm


Product Height



2.7 cm


Product Width



10 cm


Technical details



Sustainability certificates



CE, Federal Communications Commission (FCC), UKCA


Sustainability compliance



Yes


Vendor information



Brand Name


Ubiquiti


Warranty



2 Year(s)
