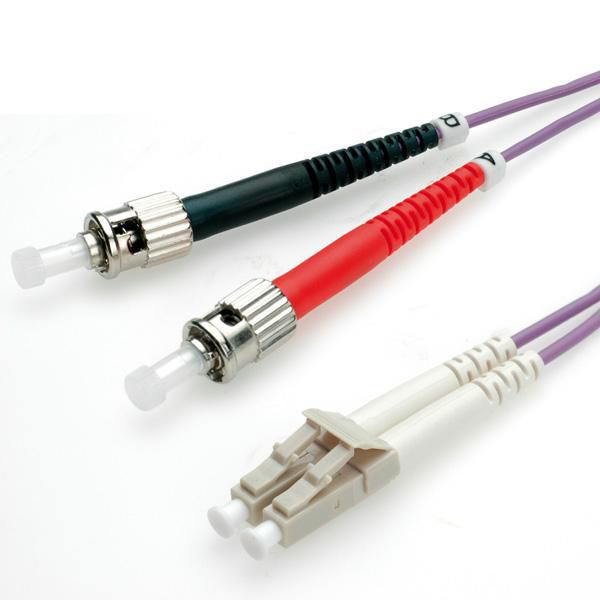

Value 21.99.8771 Fibre Optic Jumper Cable. 21.99.8771

OM4 fiber for existing 1 and 10 Gbit/s applications as well as future 40 and 100 Gbit/s systems. Allows extended reach upwards of 550 meters at 10 Gbit/s for ultra long building backbones and medium length campus backbones. With an laser bandwidth of 4700 MHz-km (more than double the IEEE requirement for 10 Gbit/s 300 meter support), the OM4 fiber is also especially well suited for shorter reach in data centers and high performance computing applications.

Features



Cable length



1 m


Cladding diameter



125 µm


Connector 1



LC


Connector 1 gender



Male


Connector 2



ST


Connector 2 gender



Male


Connector polish type



PC


Core diameter



50 µm


Fibre optic type



OM4


Full duplex



Yes


Insertion loss



0.3 dB


Jacket material



Low smoke zero halogen (LSZH)


Product colour



Purple


Logistics data



Harmonized System (HS) code



85447000


Operational conditions



Operating temperature (T-T)



-20 - 70 °C


Storage temperature (T-T)



-40 - 80 °C


Other features



Length



1 mm


Number of optical fibres



2


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


Value


Warranty



1 Year(s)
