Ventev M3020040O2D1818SG LTE Surface Mount M3020040O2D1818SG

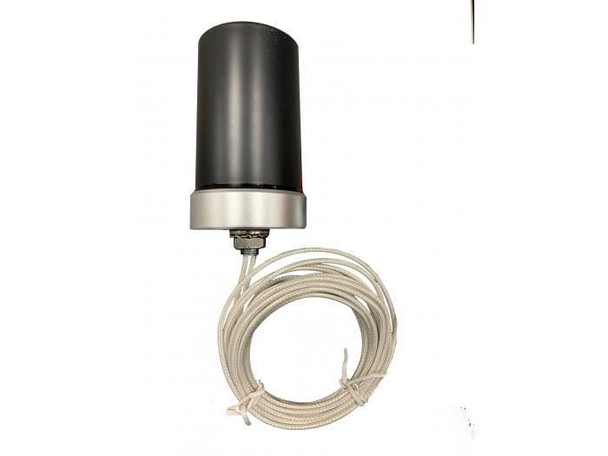

Ventev's TerraWave 698-2700 MHz 2/4dBi omnidirectional surface-mount LTE antenna is designed for outdoor IoT and Mobile networks operating primarily in the 698-960/1710-2700 MHz bands. The antenna's 3/8" bushing allows it to insert into reclosers and other standard outdoor enclosures without enlarging the mounting holes. The unterminated leads allow insertion of the two leads through the 3/8" hole, and are typically terminated in a work shop or in the field. The two leads provide connections for primary and diversity antenna ports found on many popular cellular modems.

Features



Antenna type



Omni-directional antenna


Power handling



50 Watt


Product colour



Black


Purpose



Outdoor


Package dimensions



Depth (package,cm)



46.77 cm


Gross Weight (Package, kg)



0.13 kg


Height (package,cm)



16.97 cm


Width (package,cm)



16.97 cm


Packaging content



Quantity



1


Quantity per pack



1 pc(s)


Performance



Antenna gain level (max)



2.5 dBi


Horizontal beam width



360 �


Vertical beam width



65 �


Product dimensions



Net Weight (Product, kg)



0.03 kg


Vendor information



Brand Name


Ventev


Warranty



2 Year(s)
