Ventev M6040060O2D1802R 2.4/5 GHz 4/6 dBi Ceiling M6040060O2D1802R

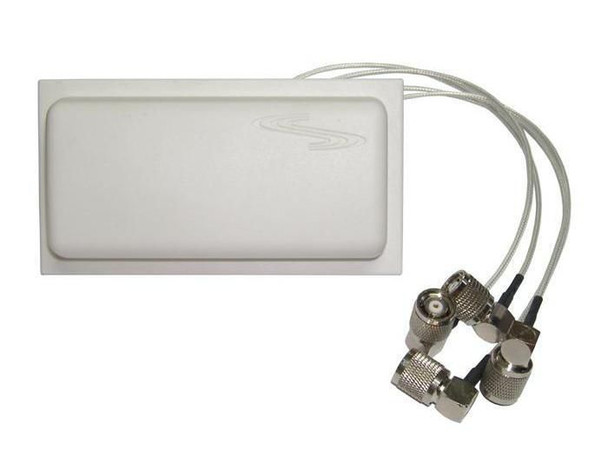

2.4/5 GHz 4/6 dBi Mini Quad Ceiling Wi-Fi Antenna with Four RA RPTNC Plugs and 18� Pigtails

Ventev�s TerraWave 2.4/5 GHz 4/6 dBi Mini Quad Ceiling Wi-Fi Antenna is designed to work with 4-Lead MIMO radios functioning in the 802.11n wireless protocol band. It features four dual band antennas in a single unit. This solution allows engineers to simplifyWi-Fi deployments by using only one antenna for dual band access points.

Features



Antenna connector type



RP-TNC


Antenna type



Omni-directional antenna


Cable length



0.45 m


Connector gender



Male


Mounting



Ceiling


Polarization



Vertical polarization


Product colour



White


Purpose



Indoor


RoHS compliance



Yes


Voltage Standing Wave Ratio (VSWR)



2.5


Operational conditions



Operating temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



38.71 cm


Gross Weight (Package, kg)



0.14 kg


Height (package,cm)



22.58 cm


Width (package,cm)



37.1 cm


Performance



Antenna gain level (max)



6 dBi


Bandwidth note



700 MHz


Frequency band



2.4 - 5.85 GHz


Impedance



50 ?


Networking standards



IEEE 802.11n


Product dimensions



Net Weight (Product, kg)



0.04000000000000001 kg


Product Depth



2.5 cm


Product Height



7.4 cm


Product Width



13.7 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Ventev


Warranty



1 Year(s)
