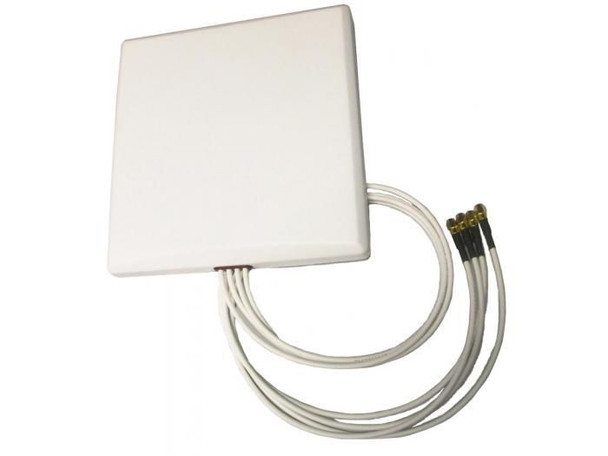

Ventev M6060060MP1D43620 2.4/5 GHz 6 dBi M6060060MP1D43620

2.4/5 GHz 6 dBi MIMO Quad Patch Wi-Fi Antenna with RPSMA Plug Connector

Ventev's TerraWave 2.4/5 GHz multiple-input and multiple-output (MIMO) quad patch Wi-Fi antenna is designed to operate with many manufacturers' enterprise-class 802.11n MIMO access points (APs). The antenna comes with four RPSMA Plug connectors, 36" cables and an articulating mount. With dual-band leads, each cable supports both 2.4 and 5 GHz, making it an ideal antenna to support demanding indoor or outdoor applications in the next generation IEEE 802.11n wireless communication system. The antenna radome is designed with withstand challenging environments where this is exposure to moisture and dust. The articulating mount allows for multiple mounting options on either a wall or a mast/pole.

Features



Antenna connector type



RP-SMA


Antenna type



MIMO directional antenna


Cable length



0.91 m


Front to back ratio



18 dB


Mounting



Wall/Pole


Polarization



Vertical polarization


Product colour



White


Voltage Standing Wave Ratio (VSWR)



2


Operational conditions



Operating temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



75.81 cm


Gross Weight (Package, kg)



0.86 kg


Height (package,cm)



37.1 cm


Width (package,cm)



62.9 cm


Performance



Antenna gain level (max)



6 dBi


Frequency band



2.4 - 5.850 GHz


Horizontal beam width



80 �


Networking standards



IEEE 802.11n


Vertical beam width



80 �


Product dimensions



Net Weight (Product, kg)



0.76 kg


Product Depth



2.79 cm


Product Height



22.86 cm


Product Width



23.36 cm


Vendor information



Brand Name


Ventev


Warranty



2 Year(s)
