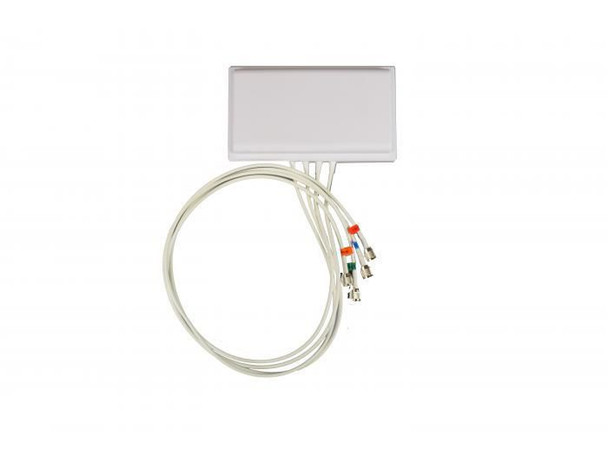

Ventev M6060060P1D43602V 2.4/5 GHz 6 dBi Omni M6060060P1D43602V

2.4/5 GHz 6 dBi Directional Wi-Fi Antenna with 4 RPTNC Plugs

Ventev's TerraWave 2.4/5 GHz 6 dBi High Density Multiple-Input and Multiple-Output (MIMO) directional Wi-Fi antenna is designed to operate with Cisco's latest 802.11ac Waves I & II WLAN access points. The antenna's gain and directional beam delivers on the modern user demand for high capacity connectivity. 4 dual-band leads deliver exceptional performance while simplifying connection to the access point. An articulating mount enables the antenna to be pointed precisely where coverage is most needed, and comes with mounting hardware to support mast and/or wall mounting.

Features



Antenna connector type



RP-TNC


Antenna type



Directional antenna


Cable length



0.91 m


Isolation



20 dB


Mounting



Wall/Pole


Polarization



Vertical polarization


Product colour



White


RoHS compliance



Yes


Wind load



60


Operational conditions



Operating temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



83.87 cm


Gross Weight (Package, kg)



0.46 kg


Height (package,cm)



22.58 cm


Width (package,cm)



64.52 cm


Performance



Antenna gain level (max)



6 dBi


Bandwidth note



700 MHz


Frequency band



2.4 - 5.85 GHz


Impedance



50 ?


Networking standards



IEEE 802.11ac


Product dimensions



Net Weight (Product, kg)



0.4 kg


Product Depth



3.6 cm


Product Height



14.2 cm


Product Width



25.4 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Ventev


Warranty



2 Year(s)
