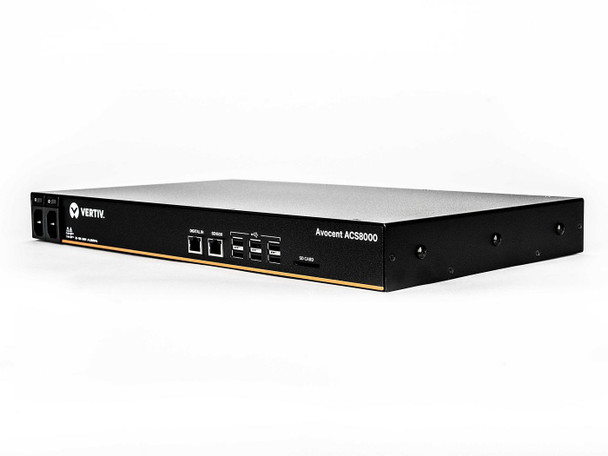

Vertiv ACS8016MDAC-404 16-PORT ACS8000 CONSOLE DUAL ACS8016MDAC-404

The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6).

Certificates



Certification



FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)


Management features



Management protocols



CLI, HTTP/ HTTPS, SNMP


Memory



eMMC capacity



16 GB


Flash memory



16000 MB


RAM capacity



1024 MB


RAM type



DDR3L


Network



Cable types supported



Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber


Copper ethernet cabling technology



10BASE-T, 100BASE-T, 1000BASE-T


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



-10 - 60 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Other features



Safety



UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)


Package dimensions (verified)



Depth Verified



55 cm


Gross Weight Verified



5.37 kg


Height Verified



19.8 cm


Width Verified



34.3 cm


Ports & interfaces



AC outlet types



C13 coupler


Console port



RJ-45


Ethernet LAN (RJ-45) ports



2


Serial ports quantity



16


SFP module slots quantity



2


USB 2.0 ports quantity



8


Power



AC input frequency



50 - 60 Hz


AC input voltage



103 - 240 V


Input current



0.1 A


Number of power supply units



2


Power consumption (max)



35 Watt


Power consumption (typical)



20 Watt


Power source type



AC


Processor



Processor architecture



ARM Cortex-A9


Processor cores



2


Processor family



ARM Cortex-A9


Processor frequency



667 MHz


Product dimensions



Net Weight (Product, kg)



5.2700000000000005 kg


Security



Authentication method



LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)


IP address filtering



Yes


One-time password (OTP)



Yes


Security algorithms



3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2


Software



Operating system installed



Indbygget LINUX


Technical details



Internal modem



Yes


Product colour



Black


Rack mounting



Yes


Temperature sensor



Yes


Web-based management



Yes


Zero Touch Provisioning (ZTP)



Yes


Vendor information



Brand Name


Vertiv


Warranty



2 Year(s)


Weight & dimensions



Dimensions (WxDxH)



438.2 x 241.3 x 44.5 mm
