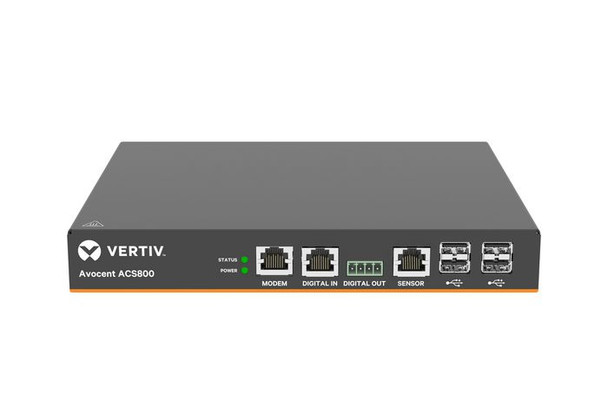

Vertiv ACS804MEAC-404 4-Port ACS800 Serial Console ACS804MEAC-404

The Vertiv Avocent ACS 800 serial console system takes our renowned enterprise class technologies utilized in data centers around the world and packages the key features into an exciting compact and cost effective form factor. Providing serial access, environmental monitoring, IoT integration and remote networking capability to the Edge oriented market sectors of financial institutions, retail chains, education and others.

Regional IT managers and facility engineers will benefit with the ability to perform secure, remote management and out-of-band management of IT assets from anywhere in the world. Featuring a dual-core ARM processor architecture with expanded memory capabilities, RS232/RS485/RS422 serial access, USB, Gigabit Ethernet and environmental sensor access, the Yochto project based Linux operating system and available DSView� management software, provides the Avocent ACS 800 optimal performance, security, reliability for a complete out-of-band management solution.

- Support for Liebert GXT4 UPS systems and Rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton
- 4 USB ports to support new IT equipment and external devices
- Console event logging and notification, including �last gasp� capture
- Regulatory compliance and easy troubleshooting � online and off-line data logging with time stamps
- Strong dial-up and secure dial-back using optional built-in modem
- Environmental sensor port to connect temperature, humidity, differential pressure, leak, door pin sensors (up to 8 can be daisy chained)

Certificates



Certification



FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea)


Management features



Management protocols



CLI, HTTP/HTTPS, SNMP


Memory



Card reader integrated



No


eMMC capacity



16 GB


Flash memory



16000 MB


RAM capacity



1024 MB


RAM type



DDR3L


Network



Cable types supported



Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber


Copper ethernet cabling technology



10BASE-T, 100BASE-T, 1000BASE-T


IP forwarding support



Yes


Supported network protocols



IPv6


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 70 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 90 �C


Other features



Safety



UL (USA), cUL (CANADA), EN-60950 (EU), CB, Customs Union (CU)


Package dimensions



Gross Weight (Package, kg)



2.16 kg


Ports & interfaces



Console port



RJ-45


Ethernet LAN (RJ-45) ports



2


Serial ports quantity



4


USB 2.0 ports quantity



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


DC input voltage



12 V


Number of power supply units



1


Power consumption (max)



28 Watt


Power consumption (typical)



7 Watt


Power source type



AC, DC


Processor



Processor architecture



ARM Cortex-A9


Processor cores



2


Processor family



ARM Cortex-A9


Processor frequency



667 MHz


Product dimensions



Net Weight (Product, kg)



1.73 kg


Security



Authentication method



LOCAL, RADIUS, LDAP, TACACS+ and ONE TIME PASSWORD(OTP)


IP address filtering



Yes


One-time password (OTP)



Yes


RSA SecurID



Yes


Security algorithms



3DES, 128-bit AES, 192-bit AES, 256-bit AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2


Software



Operating system installed



Indbygget LINUX


Technical details



Event logging



Yes


Internal modem



Yes


Product colour



Black


Rack mounting



Yes


Temperature sensor



Yes


Web-based management



Yes


Zero Touch Provisioning (ZTP)



Yes


Vendor information



Brand Name


Vertiv


Warranty



2 Year(s)


Weight & dimensions



Dimensions (WxDxH)



212.6 x 181.9 x 29.5 mm
