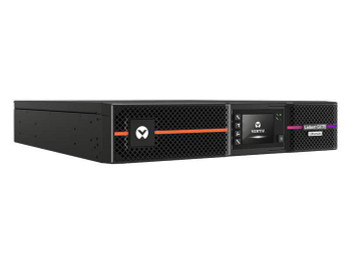

Vertiv GXT5-1500IRT2UXL Liebert GXT5 1ph UPS. 1.5kVA. GXT5-1500IRT2UXL

The Vertiv Liebert GXT5 UPS is an online double conversion UPS solution
which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system.
The Liebert� GXT5 is a single phase UPS built on the super reliable platform of Liebert GXT seriessupporting over a million critical systems all over the world.
With market leading efficiency and unity power factor operation, the Liebert GXT5 will fill your critical application needs for both centralized and edge network applications. Scalable runtime options with matching external battery cabinets offer additional flexibility when extended uninterrupted power is required. User friendly LCD interface as well as full networkmanagement capability, including configuration and remote updates, make this system easy to deploy and simple to maintain. Sleep well knowing your business is protected by the premium products from Vertiv.

Battery



Battery capacity



9 Ah


Battery voltage



12 V


Charging current



2.2 A


Number of batteries supported



4


Design



Certification



UL-1778 (Fifth Edition), C-UL listed, IEC 62040-1: 2008 (First Edition) + Am 1:2013, EN 62040-1:2008+A1:2013, CISPR22 Class A (RFI)/ FCC Part 15 (Class A), ISTA Procedure 1A, ANSI C62.41 Category B


Display type



LCD


Form factor



Tower


Product colour



Black


Rack capacity



2U


Features



ECO mode



Yes


Efficiency



93 %


Input frequency



40 - 70 Hz


Input operation voltage (max)



230 V


Input operation voltage (min)



230 V


Noise level



46 dB


Output operation voltage (max)



240 V


Output operation voltage (min)



200 V


Output power



1500 Watt


Output power capacity



1.5 kVA


Power factor



0.99


UPS topology



Double-conversion (Online)


Waveform



Pure sine


Operational conditions



Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Gross Weight (Package, kg)



24.99 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Modem (RJ-11) ports



1


Power plug



C14 coupler


Serial interface



Yes


Serial interface type



RJ-45


USB port



Yes


Product dimensions



Net Weight (Product, kg)



21 kg


Product Depth



8.5 cm


Product Height



47 cm


Product Width



43 cm


Vendor information



Brand Name


Vertiv
