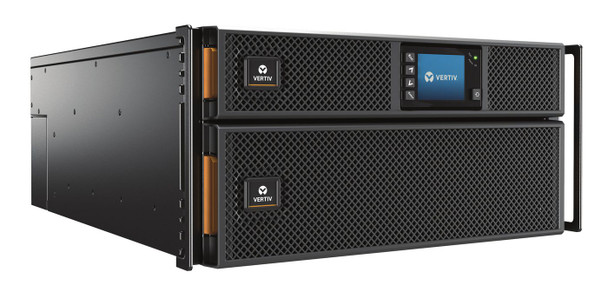

Vertiv GXT5-6000IRT5UXLN Liebert GXT5 1ph UPS. 6kVA. GXT5-6000IRT5UXLN

The Liebert� GXT5� single phase UPS operates with high power efficiency and it is ideally suited to protect critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets offer additional flexibility when extended uninterrupted power is required. Userfriendly LCD interface as well as full network management capability, including configuration and remote updates, make this system easy to deploy and simple to maintain. With market-leading efficiency and unity power factor operation, the Liebert� GXT5� will fill your critical application needs.Sleep well knowing your business is protected by the premium products from Vertiv.

With internet of things (IoT), edge computing and 5G driving the proliferation of interconnected devices, there is growing need to place compute and storage closer to the users to reduce latency and improve the overall customer experience.These new technology trends are putting pressure on the power demand, as there is all the more a need to maintain efficiency and availability. You need an uninterruptible power supply (UPS) system that's highly available, energy efficient and flexible enough to adapt according to your business needs.

The new Liebert GXT5 from Vertiv is an advanced version of the widely-regarded GXT UPS series.

Battery



Charging current



2.25 A


Typical backup time at full load



330 min


Typical backup time at half load



870 min


Design



Form factor



Tower


Product colour



Black


Features



Efficiency



94 %


Input frequency



40/70 Hz


Input operation voltage (max)



288 V


Input operation voltage (min)



176 V


Noise level



55 dB


Output frequency



50/60 Hz


Output operation voltage (max)



240 V


Output operation voltage (min)



200 V


Output power



6000 Watt


Output power capacity



6 kVA


UPS topology



Double-conversion (Online)


Waveform



Pure sine


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-15 - 40 �C


Ports & interfaces



AC outlet types



C13 coupler, C19 coupler


AC outlets quantity



8 AC outlet(s)


Product dimensions



Net Weight (Product, kg)



70.8 kg


Product Depth



21.7 cm


Product Height



63 cm


Product Width



43 cm


Vendor information



Brand Name


Vertiv
