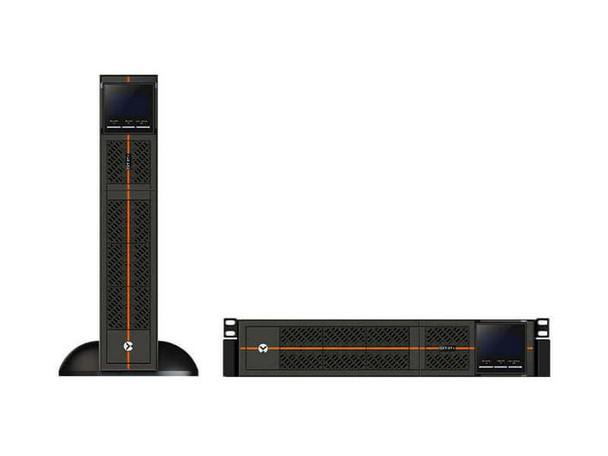

Vertiv GXTRT-2000IRT2UXL GXT RT+ 1ph UPS. 2kVA. input GXTRT-2000IRT2UXL

The Vertiv Liebert GXT RT+ Uninterruptible Power Supply (UPS) (GXTRT-2000IRT2UXL) is an online double conversion solution and a high quality battery backup. With a power capacity of 2kVA, it delivers the high-performance protection you need. The high 0.9 power factor of this single-phase UPS enables continuous, reliable power to more connected devices from a wide range of input voltages while being energy efficient and, delivering maximum value. This 1ph UPS adapts to areas with unstable power-mains supply and offers an optional tower or rack mount to meet varying installation requirements. The simplified installation with at-a-glance configuration information offers you a user-friendly interface (LCD) to work with. This model has a IEC60320 C14 INLET Connector Type and has 6 locking C13 receptacles. The ECO power-supply mode helps you save the maximum amount of energy which drives cost savings.

Battery



Battery capacity



9 Ah


Battery technology



Sealed Lead Acid (VRLA)


Battery voltage



12 V


Hot-swap battery



Yes


Number of batteries supported



4


Typical backup time at full load



3.2 min


Typical backup time at half load



9 min


Design



Certification



CE Mark; IEC/EN 62040-1: 2014, IEC/EN 62040-2:2006+AC:2006 Class A, EN 61000-4-5: 2005 Class 2 L-N, Class 3 L-G, ISTA 2A


Display



LCD


Display type



LCD


Form factor



Rackmount


Product colour



Black


Rack capacity



2U


Safety



CE


Features



Audible alarm(s)



Yes


Efficiency



89 %


Efficiency (On-line mode)



89 %


Emergency Power Off (EPO)



No


Input frequency



40 - 70 Hz


Input operation voltage (max)



288 V


Input operation voltage (min)



178 V


Input power factor



0.9


Noise level



55 dB


Number of input phases



1


Number of output phases



1


Output frequency



50/60 Hz


Output operation voltage (max)



240 V


Output power



1800 Watt


Output power capacity



2 kVA


Output power factor



0.9


Output voltage regulation



1 %


Power factor



0.9


Power protection features



Overload


UPS topology



Double-conversion (Online)


Waveform



Pure sine


Logistics data



Harmonized System (HS) code



85078000


Shipping (inner) case gross weight



20.7 kg


Shipping (inner) case height



24 cm


Shipping (inner) case length



70 cm


Shipping (inner) case width



56.5 cm


Operational conditions



Operating altitude



0 - 2000 m


Operating relative humidity (H-H)



20 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 50 �C


Package dimensions



Depth (package,cm)



8.8 cm


Gross Weight (Package, kg)



20.7 kg


Height (package,cm)



43.8 cm


Width (package,cm)



46.2 cm


Packaging data



Cables included



Input power cable, Output power cable, Power load cable, USB cable


Manual



Yes


Quick installation guide



Yes


Rack mount kit



Yes


Ports & interfaces



AC outlet types



C13 coupler


AC outlets quantity



6 AC outlet(s)


Power plug



C14 coupler


Serial ports quantity



1


USB port



Yes


Product dimensions



Net Weight (Product, kg)



18.2 kg


Product Depth



46.2 cm


Product Height



8.8 cm


Product Width



43.8 cm


Technical details



Harmonized System (HS) code



85078000


Sustainability certificates



RoHS


Vendor information



Brand Name


Vertiv


Warranty



2 Year(s)
