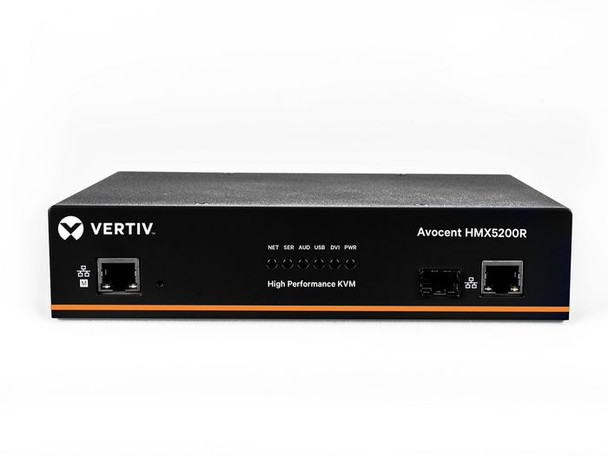

Vertiv HMX5200R-202 HMX RX dual DVI-D. USB. audio. HMX5200R-202

Avocent HMX 5200R High Performance KVM System
The Avocent HMX 5000 Series is a high performance KVM (Keyboard, Video and Mouse) extender that forms part of the matrix Solution. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, while maintaining a pixel perfect desktop experience.

Design



Certification



CE, FCC, UL


Housing material



Metal


LED indicators



Y, Yes


Product colour



Blue


Rack capacity



1U


Rack mounting



Yes


Display



Built-in display



No


On Screen Display (OSD)



Yes


Logistics data



Harmonized System (HS) code



85176200


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



15.24 cm


Gross Weight (Package, kg)



1.45 kg


Height (package,cm)



27.94 cm


Width (package,cm)



26.67 cm


Packaging content



AC adapter included



Yes


Manual



Yes


Quick installation guide



Yes


Performance



Firmware upgradeable



Yes


HD type



Full HD


Maximum resolution



1920 x 1200 Pixels


Number of users



16 user(s)


Plug and Play



Yes


Ports & interfaces



Audio connections



Yes


DC-in jack



Yes


DVI-D ports quantity



2


Headphone outputs



1


Keyboard port type



USB


Mouse port type



USB


Number of computers controlled



1


Number of microphone inputs



1


Serial port type



DE-9 (DB-9)


Serial ports quantity



1


USB 2.0 ports quantity



4


USB 2.0 Type-A hub ports quantity



4


USB connector type



USB Type-A


Video port type



DVI-D


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Compatible power plug types



EU


Input current



0.8 A


Power source



AC


Product dimensions



Net Weight (Product, kg)



1.3499999999999999 kg


Product Depth



15 cm


Product Height



4.4 cm


Product Width



19.8 cm


Vendor information



Brand Name


Vertiv


Warranty



2 Year(s)
