Vertiv VRCS3307-230VS VRC-S integrated micro data VRCS3307-230VS

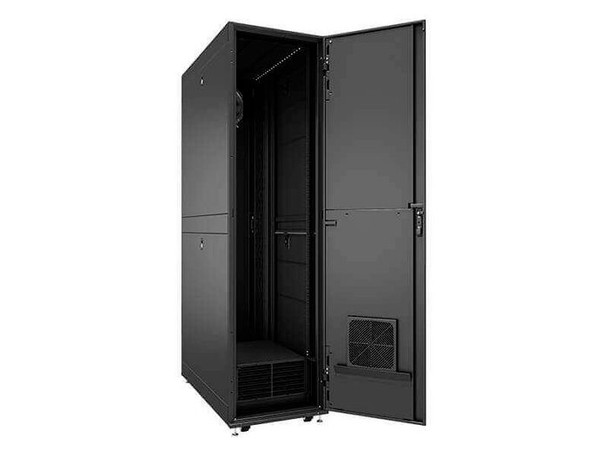

The Vertiv VRC-S VRCS3307-230VS offers a complete micro data center solution to rapidly convert unconditioned areas into a pre-engineered edge IT space for your critical IT infrastructure. The unit is completely factory integrated. This solution consists of a cabinet based on VR3307 rack (48 U, 1200 mm deep, 600 mm wide) with a pre-installed and pre-filled 3,5 kW split cooling module (VRC202KIT-N) that provides cool air directly to your critical IT gear. This VRCS3307-230VS includes an outside condenser unit for a minimum ambient temperature of down to -15 �C. It removed the heat outside the building shell. The connection of the two cooling elements is not included. The rack system separates the cool air in the front from hot exhaust air in the rear. The cooling system is backed up with an independently controlled emergency fan. The Vertiv VRC-S also has an intelligent single phase Vertiv Geist rPDU GU30017L (switched and monitored on outlet level), 32 A, 230 V, vertical mounted with locking IEC60320 C13 (20) and C19 (4) receptables, rack temperature sensor (1), 2,5 m external power cord and an IEC60309 2P + E 32 A plug. The PDU is connected to temperature and door contact sensors. The entire system can be managed through a single IP address with Vertiv Intelligence Director. The VRC-S includes a 3 years warranty on the entire system with product registration. Vertiv offers optional installation and preventative maintenance services. It is ideal for network closets, small computer rooms, and edge computing spaces.

Logistics data



Harmonized System (HS) code



85389099


Package dimensions



Depth (package,cm)



153 cm


Gross Weight (Package, kg)



384 kg


Height (package,cm)



241.3 cm


Width (package,cm)



143 cm


Performance



Housing colour



Black


Product dimensions



Net Weight (Product, kg)



261 kg


Technical details



Harmonized System (HS) code



85389099


Vendor information



Brand Name


Vertiv


Warranty



2 Year(s)
