Vision VFM-F50_DL Vision VFM-F50_DL TV mount VFM-F50_DL

Until recently meeting rooms unusually only had one display, but with the surging popularity of MTR (Microsoft Teams Rooms) and Zoom rooms installers need a way to installer two displays.

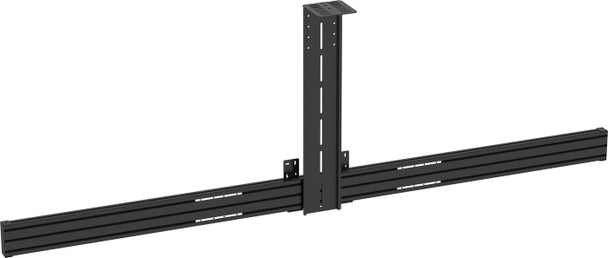

This extruded aluminium rail fits to Vision's F50 and F51 floor stands to allow two displays to be fitted side by side. We offer this bracket by itself, or bundled with the floor stands.

Camera Shelf
The centre shelf supports the camera in the middle, giving remote participants a better eye contact experience. It supports a full size camera like Logitech's Rally in between the two two displays. Or leave the platform off and fix a smaller camera like Logitech's Brio directly to the shelf tongue.

It can be fixed below the display, above, or in the centre.

2 x Displays
Support two displays up to 86". Each display can weight up to 45 kg.

3+ Displays
There is no limitation to the number of wall mounts you can fix, so you could fix three displays in landscape or portrait. The wall mounts are not included with this part so you need to order them separately.

Compatibility
Works with these Vision wall mounts:- VFM-W4X4
- VFM-W4X6
- VFM-W6X4
- VFM-W8X6
- VFM-W10X6

Works with these Vision floor stands:- VFM-F50/T
- VFM-F51/T

Modular
The rail comes in three parts with joiners, so you can break it down for easier transport.

Features



Compatibility



VFM-W4X4 VFM-W4X6 VFM-W6X4 VFM-W8X6 VFM-W10X6 VFM-F50/T VFM-F51/T


Housing material



Aluminium


Maximum screen size



86 "


Maximum weight capacity



95 kg


Mounting type



Floor/wall


Number of displays supported



3


Product colour



Black


Product type



Rail module


Package dimensions



Depth (package,cm)



22.4 cm


Gross Weight (Package, kg)



2.6 kg


Height (package,cm)



23.7 cm


Width (package,cm)



88.4 cm


Packaging data



Quantity per pack



1 pc(s)


Product dimensions



Net Weight (Product, kg)



2 kg


Product Depth



4 cm


Product Height



12.26 cm


Product Width



240.1 cm


Vendor information



Brand Name


Vision


Warranty



1 Year(s)
