Vision VFM-F50T/D Vision VFM-F50T/D TV mount VFM-F50T/D

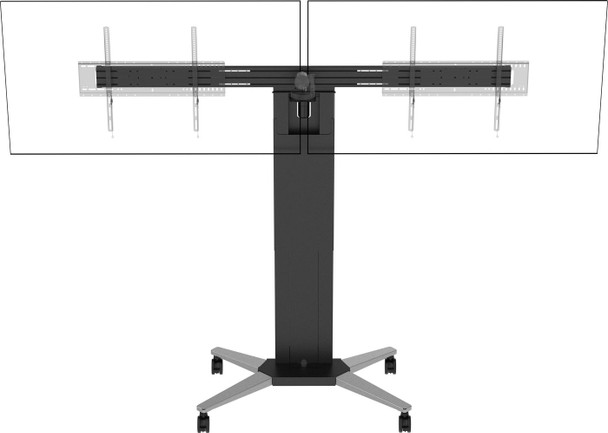

Need to install a Microsoft Teams or Zoom room? Vision�s VFM-F50T Dual trolley makes it easy to install two displays on one floor stand. This kit comprises the portable F50T with a dual-display adaptor rail, and a second wall mount.

The F50T has motorised height adjustment so with a one-button press, you can raise it to so you can raise it high for bigger rooms, or lower it to align with the height of a meeting table.

2 x Displays
Support two displays from 55" to 86". Each display can weight up to 40 kg. The aluminium rail comes in three parts and allows side to side adjustment of the displays.

Glass Walls
If you have a meeting room with a non-structural or glass wall the F50T feet can be reconfigured to safely support the stand leaning against the glass. Removing the wheels and changing the rear leg angle allows positioning of the display hard up against the back wall safely, without placing any load on the wall.

Camera Shelf
A centre shelf is included. It can support a camera above, below, or in the centre between the two screens. If the camera is smaller like the Logitech Brio, the platform part of the shelf assembly can be left off to make it less obtrusive.

Putting the camera at the centre of the two screens creates a more natural impression of eye contact for the remote participants.

Non-Portable Variation
We know sometimes users need a non-portable free-standing solution, so simply remove the wheels and fit the adjustable feet. The feet are low profile to reduce trip hazards.

SWL 80 kg (176 lbs)
The F50T uses heavy-gauge components to take the weight, and a linear drive with twin drive shafts to power the vertical motion. The weight of all displays combined cannot exceed this.

Four cartons
This kit contains 1 x VFM-F50T floor stand (comes in two cartons strapped together), 1 x VFM-F50_DL rail accessory, and 1 x VFM-W8X6 wall mount. If you need a different combination you can order each part separately.

Wired Control or RS-232
A wired remote control is included with simple up and down functions. It fixes to the rear of the display with an adhesive sticker. Alternatively, use a control system to activate the F50T via RS-232 and add pre-set positions, and upper and lower limits.

4" Wheels
Medical-grade 4? (100 mm) castors glide over any bumps, making the stand easy to pull even on deep carpet. Big wheels reduce vibration of your expensive AV equipment. All wheels are lockable.

Hide Mess
Generous cable entry holes make routing cables quick and easy. The front cover can be removed for end users to easily access anything they need. There is also plenty of space to hide cables, media players, mini PCs, and power distribution boards inside the column.

Landscape or Portrait
Vision's VESA mounts support portrait or landscape orientation.

800 mm / 31.5" Motorised Height Adjustment
The height of the display can be altered to suit the audience thanks to motorised height adjustment. The telescopic column movement range is 800 mm / 31.5?.

Increased Safety
If there is obstruction under the display as it is lowered, the weight of the display simply rests on top of the obstruction. It does not pull down and crush the obstruction. There is safety sensor which sensors obstacles and will stop the motor.

Design



Housing material



Aluminium, Steel


Product colour



Black


Ergonomics



Cable management



Yes


Easy to adjust



Yes


Height adjustment



Yes


Height adjustment type



Electric


Lifting speed



16 mm/sec


Lockable wheels



Yes


Number of wheels



4 wheel(s)


Wheels



Yes


Mounting



Maximum screen size



86 "


Maximum VESA mount



800 x 600 mm


Maximum weight capacity



80 kg


Minimum screen size



55 "


Minimum VESA mount



300 x 300 mm


Mounting type



Floor-to-wall


Number of displays supported



2


Panel mounting interface



300 x 400, 300 x 300, 400 x 200, 400 x 400, 400 x 300, 400 x 600, 500 x 400, 500 x 500, 600 x 400, 600 x 600, 600 x 500, 800 x 400, 800 x 500, 800 x 600


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Packaging content



Cables included



Power


Mounting brackets included



Yes


Number of mounting brackets



2


Screw nuts included



Yes


Packaging data



Package 1 dimensions (WxDxH)



1112 x 422 x 376 mm


Package 1 weight



63 kg


Package 2 dimensions (W x D x H)



880 x 235 x 40 mm


Package 2 weight



6.8 kg


Package 3 dimensions (W x D x H)



884 x 224 x 237 mm


Package 3 weight



12.1 kg


Quantity per pack



1 pair(s)


Power



AC input voltage



110 - 230 V


Power cable length



2.5 m


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Height



236 cm


Product Width



128 cm


Technical details



Easy to install



Yes


Lifting weight (max)



80 kg


Orientation



Landscape


Quantity per pack



1 pc(s)


Sustainability certificates



CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS, WEEE


Sustainability compliance



Yes


Vendor information



Brand Name


Vision


Warranty



1 Year(s)


Weight & dimensions



Depth (max)



83.1 cm
