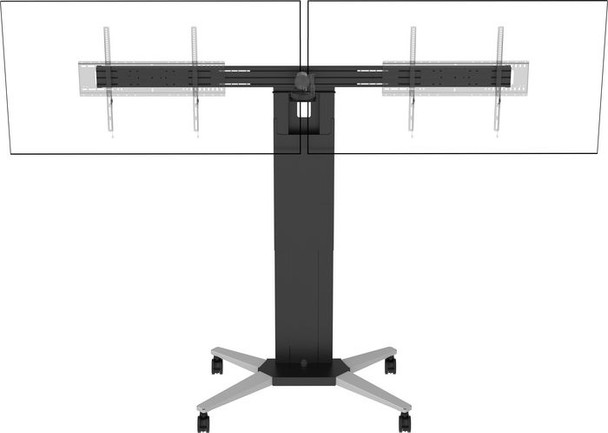

Vision VFM-F51T/D Vision VFM-F51T/D TV mount VFM-F51T/D

Need to install a Microsoft Teams or Zoom room? Vision�s VFM-F51T Dual trolley makes it easy to install two displays on one floor stand. This kit comprises the portable F51T with a dual-display adaptor rail, and a second wall mount.

The F51T has manual height adjustment, so you can raise it high for bigger rooms, or lower it to align with the height of a meeting table.

2 x Displays
Support two displays from 55" to 86". Each display can weight up to 40 kg. The aluminium rail comes in three parts and allows side to side adjustment of the displays.

Glass Walls
If you have a meeting room with a non-structural or glass wall the F50T feet can be reconfigured to safely support the stand leaning against the glass. Removing the wheels and changing the rear leg angle allows positioning of the display hard up against the back wall safely, without placing any load on the wall.

Camera Shelf
A centre shelf is included. It can support a camera above, below, or in the centre between the two screens. If the camera is smaller like the Logitech Brio, the platform part of the shelf assembly can be left off to make it less obtrusive.

Putting the camera at the centre of the two screens creates a more natural impression of eye contact for the remote participants.

Non-Portable Variation
We know sometimes users need a non-portable free-standing solution, so simply remove the wheels and fit the adjustable feet. The feet are low profile to reduce trip hazards.

SWL 80 kg (176 lbs)
The F51T uses heavy-gauge components to take the weight.

Four cartons
This kit contains 1 x VFM-F51T floor stand (comes in two cartons strapped together), 1 x VFM-F50_DL rail accessory, and 1 x VFM-W8X6 wall mount. If you need a different combination you can order each part separately.

Wired Control or RS-232
A wired remote control is included with simple up and down functions. It fixes to the rear of the display with an adhesive sticker. Alternatively, use a control system to activate the F50 via RS-232 and add pre-set positions, and upper and lower limits.

Hide Mess
Generous cable entry holes make routing cables quick and easy. The front cover can be removed for end users to easily access anything they need. There is also plenty of space to hide cables, media players, mini PCs, and power distribution boards inside the column.

Landscape or Portrait
Vision's VESA mounts support portrait or landscape orientation.

800 mm / 31.5" Height Adjustment
The height of the display can be altered during assembly to suit the audience.

Design



Housing material



Aluminium, Steel


Product colour



Black


Ergonomics



Cable management



Yes


Easy to adjust



Yes


Height adjustment



Yes


Height adjustment type



Manual


Lockable wheels



Yes


Number of wheels



4 wheel(s)


Wheels



Yes


Mounting



Maximum screen size



86 "


Maximum VESA mount



800 x 600 mm


Maximum weight capacity



80 kg


Minimum screen size



55 "


Minimum VESA mount



300 x 300 mm


Mounting type



Floor-to-wall


Number of displays supported



2


Panel mounting interface



300 x 400, 300 x 300, 400 x 200, 400 x 400, 400 x 300, 400 x 600, 500 x 400, 500 x 500, 600 x 400, 600 x 600, 600 x 500, 800 x 400, 800 x 500, 800 x 600


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Packaging content



Screw nuts included



Yes


Packaging data



Package 1 dimensions (WxDxH)



1112 x 422 x 376 mm


Package 1 weight



57 kg


Package 2 dimensions (W x D x H)



884 x 224 x 237 mm


Package 2 weight



12.1 kg


Package 3 dimensions (W x D x H)



880 x 235 x 40 mm


Package 3 weight



6.8 kg


Quantity per pack



1 pair(s)


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Height



244.5 cm


Product Width



128 cm


Technical details



Easy to install



Yes


Orientation



Landscape/Portrait


Quantity per pack



1 pc(s)


Sustainability certificates



CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS, WEEE


Sustainability compliance



Yes


Vendor information



Brand Name


Vision


Warranty



1 Year(s)


Weight & dimensions



Depth (max)



83.1 cm
