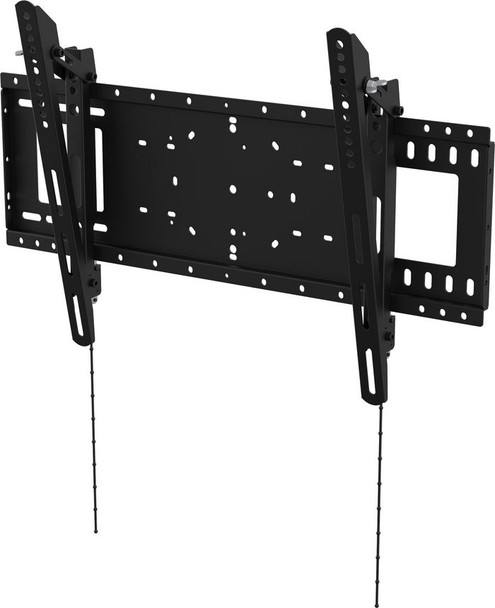

Vision VFM-W6X4T Tv Mount 190.5 Cm 75" Black VFM-W6X4T

Vision�s Vision Flat-panel Mount � Wall range is designed by Vision�s engineering team for professional AV installers. This mount is no-compromise: very strong, fast to install, highly adjustable, everything included. The VFM-W6X4 fits any flat-panel LCD or LED screen which has rear mounting holes up to 600 wide x 400 mm tall apart.

Heavy Duty
Interactive flat panels are large and very heavy. Vision�s VFM-W6X4T uses heavy gauge sheet metal to take the weight up to SWL 100 kg / 220 lb safely.

Everything Included
Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.

For 37-75?Displays
Fits most displays from 37-75?. Note: curved screens are not supported by this mount.

Meets ADA Regulations
The thin design holds the display just 45 mm / 1.8? off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.

Designed for Professionals
A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.

Latches Securely
The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.

Side by Side
Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.

Hide Media Player
Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part allow a thin media player to fix behind the display out of sight.

Side Shelf
An optional flip-up laptop shelf comes with an adjustable outrigger which fixes it to the horizontal section. It can be positioned at the correct height to the side of the display. Part Number: VFM-WSS [EU SAP: 4857149 / US SAP: tbc]

Video Conference Shelf
An optional shelf fixes in the centre above or below the display. Any camera including the Logitech Rally can be fixed to the shelf. It is also designed to accommodate Yamaha�s VVC-1000, Barco�s Clickshare CSE-200 base station, or Logitech�s Meetup wall bracket can fix to the vertical part. With VESA 100 x 100 mm holes on the vertical section, product�s like Heckler�s Zoom Room iPad enclosure can be fixed. Part Number: VFM-WVC [EU SAP: 5048878 / US SAP: tbc]

12� Tilt
Ideal in applications where the display is mounted high, this mount features tilt to direct the display downward.

Design



Certification



ADA


Housing material



Metal


Product colour



Black


Ergonomics



Adjustable depth



Yes


Distance to the wall (max)



4.5 cm


Tilt angle range



0 - 12 �


Logistics data



Harmonized System (HS) code



85299097


Mounting



Maximum screen size



75 "


Maximum VESA mount



600 x 400 mm


Maximum weight capacity



100 kg


Minimum screen size



37 "


Minimum VESA mount



200 x 200 mm


Mounting type



Wall


Number of displays supported



1


Panel mounting interface



200 x 200, 200 x 400, 300 x 400, 300 x 300, 400 x 200, 400 x 400, 400 x 300, 500 x 400, 500 x 500, 500 x 300, 600 x 300, 600 x 400


Suitable for computer monitor



Yes


Package dimensions



Depth (package,cm)



5.5 cm


Gross Weight (Package, kg)



5.2 kg


Height (package,cm)



23.5 cm


Width (package,cm)



68 cm


Packaging content



Manual



Yes


Product dimensions



Net Weight (Product, kg)



4 kg


Product Height



43.5 cm


Product Width



64.5 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Vision


Warranty



1 Year(s)


Weight & dimensions



Depth (min)



4.45 cm
