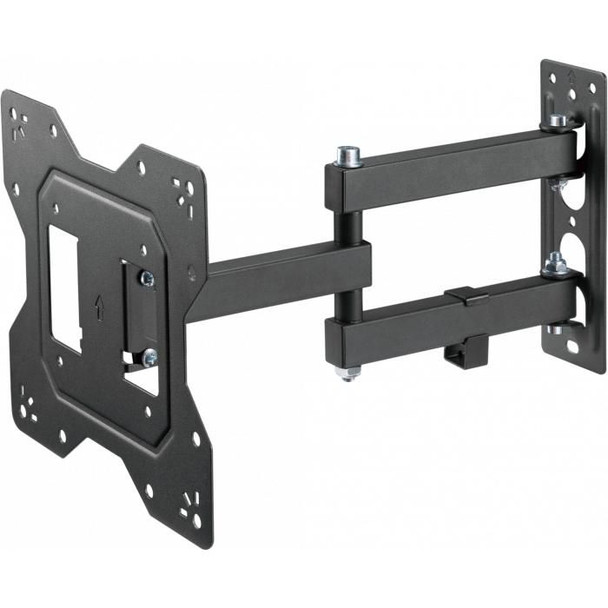

Vision VFM-WA2X2/3 Tv Mount 127 Cm 50" Black VFM-WA2X2/3

Vision's Vision Flat-Panel Mount - Wall Arm range is tough and flexible. The VFM-WA2X2/3 fits any flat-panel LCD or LED screen which has 100 x 100 mm, 200 x 200 mm, or 200 x 100 mm rear mounting holes.

Up to 50"
Most displays up to 50" use VESA 100 or 200 mounting points, so the WA2X2 fits the majority of displays up to this size. If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

Fast Installation
The mounting plate fixes to the back of the display, then just drop the display into place on the wall arm and lock in place with two bolts.

SWL 25 kg
This mount has a "safe working load" of 25 kg (55 lb). The single-arm design makes this mount especially flexible.

Cable Management
An included clip keeps cables tidy behind the TV.

Tilt and Swivel
-3� up and 10� down tilt adjustment, and 90� swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office or in meeting rooms.

VESA
The VESA standard is based on how far apart the mounting holes are on the back of your flat-panel. Holes 200 x 200 mm apart are known as VESA 200 and will suit this mount. This product also fits displays with smaller VESA sizes listed below. This product also fits displays with smaller VESA sizes listed in the specifications.

Thumbscrews
Thumbscrews are used to fix the display to help speed up the installation of this mount.

Design



Housing material



Steel


Product colour



Black


Ergonomics



Swivel angle



90 �


Tilt adjustment



Yes


Tilt angle range



-3 - 10 �


Logistics data



Harmonized System (HS) code



85299097


Mounting



Maximum screen size



50 "


Maximum VESA mount



200 x 200 mm


Maximum weight capacity



25 kg


Minimum screen size



20 "


Minimum VESA mount



100 x 100 mm


Mounting type



Wall


Number of displays supported



1


Panel mounting interface



100 x 100, 200 x 200


Package dimensions



Depth (package,cm)



29.5 cm


Gross Weight (Package, kg)



2.34 kg


Height (package,cm)



6.5 cm


Width (package,cm)



23.8 cm


Packaging data



Quantity per pack



1 pair(s)


Product dimensions



Net Weight (Product, kg)



1.8 kg


Technical details



Quantity per pack



1 pc(s)


Vendor information



Brand Name


Vision


Warranty



1 Year(s)


Weight & dimensions



Depth (max)



37.8 cm


Depth (min)



5.6 cm
