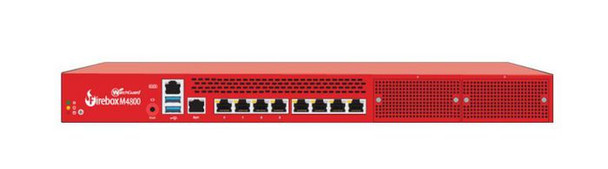

WatchGuard WGM48933 Firebox M4800 Hardware WGM48933

TOP OF THE LINE PERFORMANCE & SECURITY
With firewall throughput of up to 87 Gbps and UTM throughput up to 11.3 Gbps, the Firebox® M4800 and M5800 are our fastest Firebox appliances ever. This level of performance, paired with powerful security, flexible high-port density, and affordability makes these the ideal solutions for distributed, hub-and-spoke type deployment scenarios

TOTAL NETWORK PROTECTION
Every network needs a full arsenal of scanning engines to protect against spyware, viruses, malicious apps, botnets and more. Typically deployed at the corporate headquarters, Firebox M4800/M5800 appliances serve as the “hub,” responsible for managing and providing layered security for all communications between the head office and all remote employee and business sites.

A CLOUD’S-EYE VIEW OF YOUR ENTIRE NETWORK
WatchGuard Cloud provides full visibility into your network so that you can make timely, informed, and effective decisions about your network security anywhere, anytime. The platform displays 100+ dashboards and reports that allow you to quickly see high-level trends and anomalies, then drill down into detailed information on each.

EXPANSION MODULES FOR GREATER PORT DENSITY
Firebox M4800/M5800 appliances provide greater port density options that enable IT professionals to add additional network modules with more fiber or copper ports. Each appliance has two available slots for expansion modules, with options for 4 x 10 Gb fiber, 8 x 1 Gb copper, 8 x 1 Gb fiber, or 2 x 40 Gb fiber. Module options are identical to those on our mid-range Firebox devices, for even more flexibility.

AUTOMATION TO THE CORE
WatchGuard Firebox M Series appliances are designed with automation to the core, allowing your IT team to do more with less. The WatchGuard Automation Core makes it possible to deploy from the Cloud, block threats, update signatures, and detect and kill malware, all without lifting a finger.

Data transmission



Firewall (IMIX) throughput



16 Gbit/s


Firewall (UDP 1518) throughput



49.6 Gbit/s


Maximum data transfer rate



1000 Mbit/s


Maximum firewall connections per second



254000


TDR host sensors capacity



250


VPN (IMIX) throughput



4915.2 Mbit/s


VPN (UDP 1518) throughput



16.4 Gbit/s


WSM license quantity



9 license(s)


Network



Number of VLANs



1000


Quality of Service (QoS) support



Yes


Operational conditions



Non-operating altitude



0 - 4500 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 40 °C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-10 - 70 °C


Package dimensions



Depth (package,cm)



64.8 cm


Gross Weight (Package, kg)



4.69 kg


Height (package,cm)



20 cm


Width (package,cm)



58.8 cm


Performance



Certification



CC, FIPS WEEE, RoHS, REACH


Concurrent connections



15000000


Mean time between failures (MTBF)



63983 Hour


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



8


Ethernet LAN data rates



10, 100, 1000


Serial ports quantity



1


USB 2.0 ports quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100-240 V


Number of power supply units



2


Power consumption (max)



130 Watt


Power supply



300 Watt


Product dimensions



Net Weight (Product, kg)



3.61 kg


Product Depth



46.8 cm


Product Height



4.4 cm


Product Width



43.8 cm


Vendor information



Brand Name


WatchGuard


Warranty



1 Year(s)
