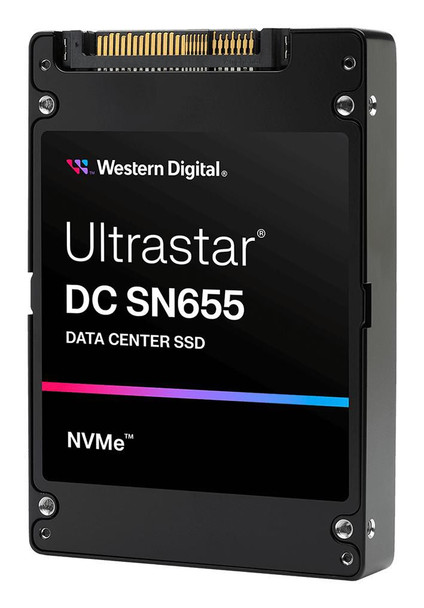

Western Digital 0TS2459 WD Ultrastar DC SN655 0TS2459

Data strategy, not just data storage
Ultrastar NVMe enterprise SSDs continue to be the ideal solution for cloud and server providers who need performant, high-capacity, cost-optimized, read-intensive performance for their data-intensive applications.

Unlocking the Full Potential of Enterprise SSDs
With dual-port redundancy and failover capability, end-to-end data protection and additional enterprise features, Ultrastar DC SN655 NVMe SSDs help ensure your data is secure and available when needed. With high-capacity, low-latency performance reaching up to 1.1M IOPs, storage providers are efficiently able to increase capacity for modern applications processing large unstructured datasets and are reducing time-to-insights of big data and enabling efficient machine learning.

Features
Ultrastar DC SN655 NVMe SSDs includes the next generation Western Digital NVMe 1.4b controller with PCIe Generation 4.0 interface and Western Digital BiCS5 TLC 3D NAND to enable higher capacities and performance at scale for increasingly larger application workloads. Designed and built for the standard 2.5� SSD storage infrastructure, the SN655 includes support for U.2 and U.3 backplanes and features power loss protection and 2.5M MTBF (projected) and 1.0 DW/D with a 5 year limited warranty.

Emerging Workloads
Ultrastar DC SN65x NVMe SSDs are optimized for cloud and scaleout workloads, providing high QoS consistency for the emerging workloads for big data, artificial intelligence, and machine learning that are increasing in size and complexity making them the ideal solution for scaling capacity and maximizing GB/watt.

Features



Component for



Server/workstation


Hardware encryption



Yes


Interface



PCI Express 4.0


Linux operating systems supported



Y, Yes


Mean time between failures (MTBF)



2500000 Hour


Memory type



TLC 3D NAND


NVMe



Yes


NVMe version



1.4


Random read (4KB)



980000 IOPS


Random write (4KB)



80000 IOPS


Read speed



6800 MB/s


Server operating systems supported



Yes


SSD capacity



8 TB


SSD form factor



U.3


Windows operating systems supported



Y, Yes


Write speed



2600 MB/s


Operational conditions



Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.91 kg


Product dimensions



Net Weight (Product, kg)



0.7 kg


Product Depth



10.03 cm


Product Height



1.49 cm


Product Width



6.98 cm


Technical details



Warranty period



5 year(s)


Vendor information



Brand Name


Western Digital


Warranty



1 Year(s)
