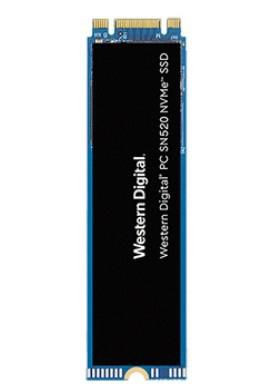

Western Digital SDAPNUW-128G Pc Sn520 Nvme 128Gb M.2 Pci SDAPNUW-128G

With future-ready, scalable NVMe architecture, the Western Digital PC SN520 NVMe SSD offers a robust solution to fuel generations of innovative IoT applications. Scalable NVMe offers a significant performance increase over SATA SSDs while further optimizing low power consumption to the low level of 2.5mW.

This NVMe SSD enables greater design flexibility for IoT and embedded customers, who seek a cost effective, small form factor, reliable and rugged storage device with low capacity points from 128GB to 512GB.

Robust Construction Suited for IoT

The Western Digital PC SN520 NVMe SSD, supporting PCIe Gen3 x2, is designed for applications that have a limited number of PCIe lanes available for storage, however, require both high performance and low power. Partners that could benefit from NVMe technology include:
- Commercial: Interactive kiosks, ATMs and Point-of-Sales (POS), Multi-Functional Printers (MFP) and industries that require high-volume transaction processing
- Edge Equipment and IoT Gateway: Such as network equipment, industrial machinery, medical equipment, or embedded PC that need the high capacities to capture the floor�s and sensors� data and the high IOPS to support the system�s data analytics
- Media Content Delivery and Streaming: In-flight entertainment systems, train control and monitoring systems, data recorder and video surveillance that require high capacity and reliability

Features



Certification



FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick


Component for



PC/Laptop


Interface



PCI Express 3.0


Mean time between failures (MTBF)



1752000 Hour


NVMe



Yes


NVMe version



1.3


Read speed



1500 MB/s


SSD capacity



128 GB


SSD form factor



M.2


Write speed



800 MB/s


Operational conditions



Operating shock



1.5 kg


Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-55 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.91 kg


Power



Operating voltage



3.3 V


Power consumption (average)



0.75 Watt


Power consumption (sleep)



0.0025 Watt


Product dimensions



Net Weight (Product, kg)



0.7 kg


Product Depth



0.24 cm


Product Height



8 cm


Product Width



2.2 cm


Vendor information



Brand Name


Western Digital


Warranty



1 Year(s)
