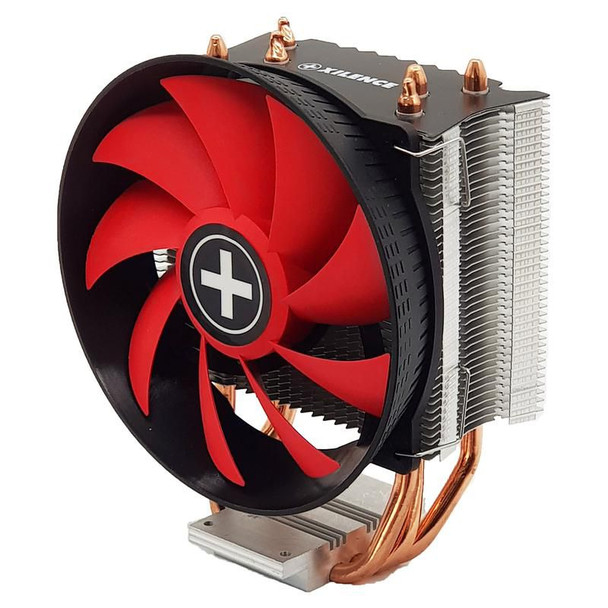

Xilence M403PRO Processor Cooler 12 Cm Black M403PRO

The compact M403PRO with its tower design is the new multi-socket cooler from the Performance C Series. Three high-performance copper heat pipes dissipate 150W waste heat to the innumerable cooling fins. These reasons make the cooler ideal for powerful multi-core processors. Additionally, the heat transmission between CPU and cooler is very evenly and efficient due to the direct contact of heat pipes and CPU. The mounting material make this cooler suitable for all current AMD and INTEL sockets. The scope of delivery not only includes the heat sink tower, as well as the 120mm PWM fan but also a holding module for Intel sockets 1150/1151/1155/1156/2011/2066/1200 and AMD sockets FM2+/FM1/FM2/AM2/AM2+/AM3 and a tube of thermal paste. For the correct installation an illustrated manual is included.

Design



Base plate material



Aluminium


Fan connector



4-pin


Fins material



Aluminium


Number of fins



40


Number of heat pipes



3


Product colour



Black


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



12.4 cm


Gross Weight (Package, kg)



0.83 kg


Height (package,cm)



15.6 cm


Width (package,cm)



10.8 cm


Performance



Bearing type



Hydraulic


Fan diameter



12 cm


Noise level (high speed)



25.6 dB


Noise level (low speed)



14.2 dB


Rotational speed (max)



1800 RPM


Rotational speed (min)



500 RPM


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+


Type



Cooler


Power



Rated voltage



12 V


Thermal Design Power (TDP)



150 Watt


Product dimensions



Net Weight (Product, kg)



0.64 kg


Product Depth



12 cm


Product Height



1.4 cm


Product Width



7.16 cm


Vendor information



Brand Name


Xilence


Warranty



1 Year(s)


Weight & dimensions



Cable length



0.36 m


Fan dimensions (W x D x H)



120 x 120 x 25 mm


Heat pipes diameter



6 mm
