Yealink 1106982 MVC940 Teams Video Conference 1106982

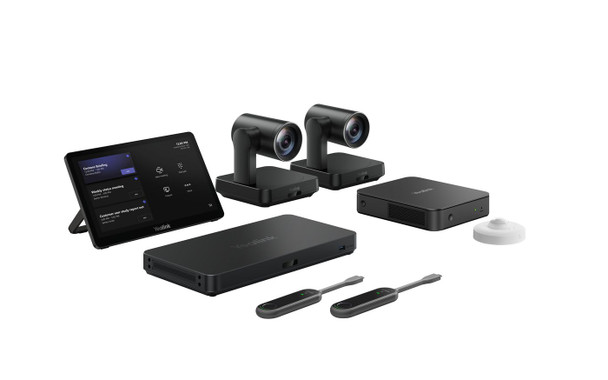

Yealink MVC940 is specially designed for extra-large conference rooms and training rooms. This set includes new generation high-performance MINI-PC MCore Pro, touch panel MTouch Plus, intelligent 4K PTZ camera UVC84, and AVHub specially designed for audio and video processing. AVHub can adjust the screen layout and realize Yealink’s exclusive multi-camera solution, which can support up to 9 cameras connected at the same time, and realize multi-speaker tracking with voice incentive mechanism Functions, adapt to the audio and video conferencing needs of various large and super large meeting rooms, classrooms, and training rooms.

Camera



Camera type



Single camera


Diagonal field of view



80 °


Horizontal field of view



73 °


Optical zoom



12 x


Sensor type



CMOS


Vertical field of view



45 °


Zoom capability



Yes


Computer system



Computer system type



Mini PC


Operating system installed



Windows 10 IoT Enterprise


Processor family



Intel® Core™ i5


Processor generation



11th gen Intel® Core™ i5


Display



Built-in display



Yes


Display



IPS


Display diagonal



11.6 "


Display resolution



1920 x 1080 Pixels


Touchscreen



Yes


Touchscreen type



Capacitive


Features



Cable lock slot



Yes


Motion sensor



Yes


Trusted Platform Module (TPM)



Yes


Trusted Platform Module (TPM) version



2.0


Interface module



Interface module audio RCA input ports quantity



1


Interface module DC input port



Yes


Interface module line-in ports quantity



1


Interface module line-out ports quantity



1


Interface module RJ-45 ports quantity



7


Interface module USB 2.0 ports quantity



2


Logistics data



Harmonized System (HS) code



85176990


Memory



Internal memory



8192 MB


Storage media type



SSD


Total storage capacity



128 GB


Network



Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)


Operational conditions



Operating relative humidity (H-H)



10 - 95 %


Operating temperature (T-T)



0 - 40 °C


Package dimensions



Depth (package,cm)



41.3 cm


Gross Weight (Package, kg)



12.1 kg


Height (package,cm)



31.2 cm


Width (package,cm)



93.5 cm


Packaging content



Camera included



Yes


Packaging content



Core Pro, Gen-3 Mini-PC MTouch Plus, Gen-3 touch panel AVHub, audio and video processor 2 x UVC84 USB PTZ Camera 2 x WPP30 wireless presentation pod RoomSensor, meeting room sensor


Performance



Auto framing



Yes


Bluetooth



Yes


Bluetooth version



5.2


Number of cameras



2


Pan range



0 - 200 °


Product colour



Black


Product type



Group video conferencing system


Tilt angle range



0 - 130 °


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


HDMI output ports quantity



3


Line-out



Yes


Reset slot



Yes


USB 2.0 ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB connector type



USB Type-A, USB Type-B


Product dimensions



Net Weight (Product, kg)



12.1 kg


Vendor information



Brand Name


Yealink


Warranty



1 Year(s)


Video



HD type



4K Ultra HD


Maximum video resolution



3840 x 2160 Pixels
