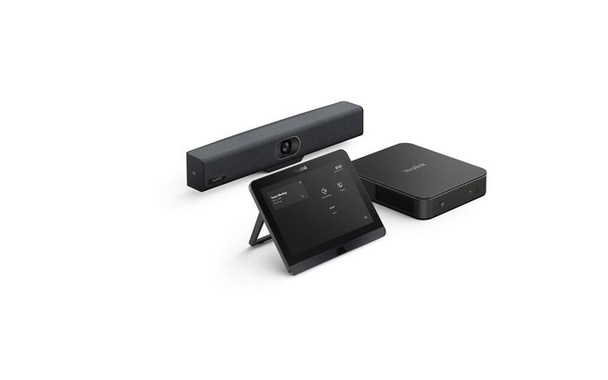

Yealink 1106993 MVC340-C4-000 MTROW ROOM 1106993

Yealink MVC340 is specially designed for huddle and entry-level small conference rooms. The new generation MVC340 portfolio is the optimum choice for small meeting rooms with easy deployment, which includes new generation high-performance MINI-PC MCore Pro, new generation touch panel MTouch E2, and intelligent USB All-in-one machine UVC34.

Audio



Audio beamforming



Yes


Audio system full duplex



Yes


Echo cancellation



Yes


Microphone pick-up range



5 m


Camera



Camera type



Single camera


Diagonal field of view



120 °


Field of view (FOV) angle



120 °


Horizontal field of view



110 °


Image sensor size



1/2.8 "


Megapixel (approx.)



8 MP


Sensor type



CMOS


Vertical field of view



78 °


Zoom capability



Yes


Computer system



Computer system type



Mini PC


Operating system installed



Windows 10 IoT Enterprise


Processor family



Intel® Core™ i5


Processor generation



11th gen Intel® Core™ i5


Display



Built-in display



Yes


Display



IPS


Display diagonal



8 "


Display resolution



1280 x 800 Pixels


Touchscreen



Yes


Touchscreen type



Capacitive


Features



Cable lock slot



Yes


Trusted Platform Module (TPM)



Yes


Trusted Platform Module (TPM) version



2.0


Memory



Internal memory



8196 MB


Internal memory type



DDR4


Storage media type



SSD


Total storage capacity



128 GB


Microphone



Number of microphone arrays



8


Network



Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)


Package dimensions



Gross Weight (Package, kg)



1.04 kg


Packaging content



AC adapter included



Yes


Cables included



USB


Camera included



Yes


Quick start guide



Yes


Performance



Auto framing



Yes


Bluetooth



Yes


Bluetooth version



5.2


Number of cameras



1


Product colour



Black, Grey


Product type



Group video conferencing system


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB connector type



USB Type-A, USB Type-B


Product dimensions



Net Weight (Product, kg)



0.8 kg


Vendor information



Brand Name


Yealink


Warranty



1 Year(s)


Video



HD type



4K Ultra HD


Maximum frame rate



30 fps


Maximum video resolution



3840 x 2160 Pixels


Supported video modes



1080p, 2160p


Weight & dimensions



Camera dimensions (WxDxH)



380 x 55 x 55 mm


Camera weight



1.28 kg


Interface module dimensions (W x D x H)



202 x 151 x 100 mm


Interface module weight



1 kg
