Yealink

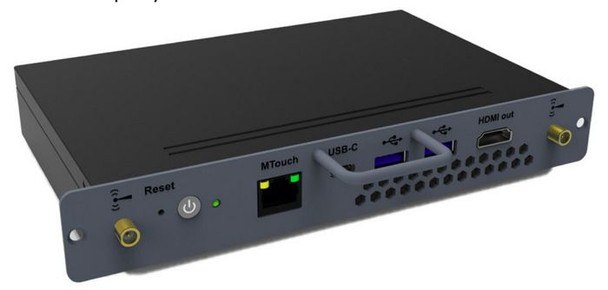

Yealink 1303084 MCORE-OPS PC for 1303084
- UPC:
- 0000000000000
- MPN:
- 1303084
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Windows OPS for MeetingBoard Series
Modular Compute Solution for Interactive Whiteboards Collaboration
Yealink MCore-OPS is a modular compute solution specially designed for interactive whiteboards. Intel's 11th generation Core i5 processor brings you more powerful computing performance and more efficient graphics processing power, allowing you to install and run more applications at the same time without lag; MCore-OPS supports TPM 2.0 to protect your data security; in addition, MCore-OPS supports CEC to automatically wake up the screen. No more external equipment is required, and the sophisticated structural design will greatly facilitate your installation and deployment.
Graphics
Discrete graphics card
No
On-board graphics card
Yes
On-board graphics card dynamic frequency (max)
1300 MHz
On-board graphics card model
Intel Iris Xe Graphics
Memory
Internal memory
8 GB
Internal memory type
DDR4-SDRAM
Memory layout (slots x size)
2 x 4 GB
Network
Bluetooth
Yes
Bluetooth version
5.2
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-10 - 50 �C
Storage temperature (T-T)
-20 - 60 �C
Package dimensions
Depth (package,cm)
21.5 cm
Gross Weight (Package, kg)
1.04 kg
Height (package,cm)
6.5 cm
Width (package,cm)
26.7 cm
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Power
DC input voltage
12 - 19 V
Processor
Configurable TDP-down
12 Watt
Configurable TDP-down frequency
0.9 GHz
Configurable TDP-up
28 Watt
Configurable TDP-up frequency
2.4 GHz
Processor boost frequency
4.2 GHz
Processor cache
8 MB
Processor cache type
Smart Cache
Processor cores
4
Processor family
Intel� Core� i5
Processor generation
11th gen Intel� Core� i5
Processor lithography
10 nm
Processor manufacturer
Intel
Processor model
i5-1135G7
Processor operating modes
64-bit
Processor socket
BGA 1449
System bus rate
4 GT/s
Tjunction
100 �C
Product dimensions
Net Weight (Product, kg)
0.8 kg
Product Depth
11.9 cm
Product Height
3 cm
Product Width
18 cm
Software
Operating system architecture
64-bit
Operating system installed
Microsoft Windows 10 IoT Enterprise
Storage
Storage media
SSD
Total storage capacity
128 GB
Vendor information
Brand Name
Yealink
Warranty
1 Year(s)
