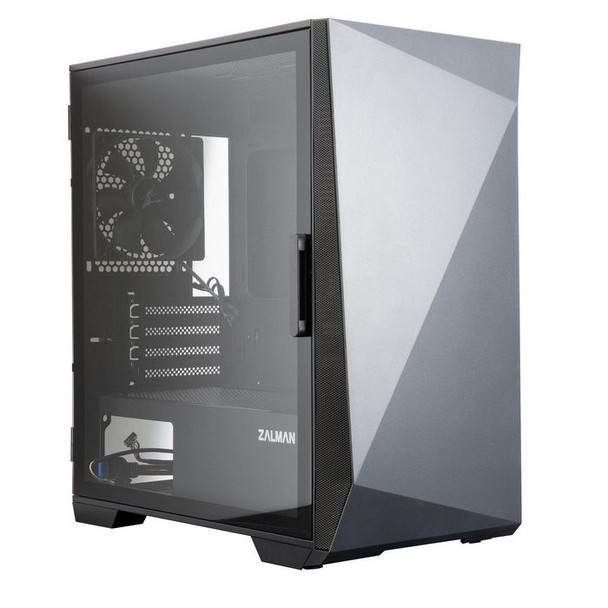

Zalman Z1 ICEBERG BLACK Computer Case Mini Tower Z1 ICEBERG BLACK

Zalman Z1 Iceberg Black
Key Features
- Zalman's unique design
- Designed for optimal air intake
- Easy to use hinged glass side panel
- Powder coated
- Latest top I/O panel
- Compact size and great expandability

Zalman's unique design
Simple and distinctive front panel appearance.

Easy-to-use hinged glass side panel and tempered glass
A 3mm rimless premium tempered glass side panel provides a panoramic view of your system. The hinged glass panel provides easy access to the interior.

Powder coating with excellent durability
Advanced coating technique uses very fine powder that is evenly distributed over the surface of the product.

Magnetic dust filter
Protects your components and allows unobstructed airflow through dust filtration.

Maximum airflow and ventilation
Pre-installed 120mm x 3 fans (front x 2, rear x 1) and optimized ventilation for fast heat dissipation in the case (supports up to 6 fans).

Specifications
Model: Z1 Iceberg Black
Case Form Factor: Micro ATX Mid-Tower
Dimensions: 409 x 221 x 426 mm
Weight: 5 kg
Materials: Plastic, steel, tempered glass
Motherboard support: mATX / Mini-ITX
Maximum VGA length: 330 mm
Maximum CPU cooler height: 160 mm
Maximum PSU Length: 210mm
PCI Expansion Slots: 4pcs
Drive Bays: 2 x Combo (3.5 or 2.5, 1 x Toolless), 3 x SSD (2.5))
Fan Support: Front 3 x 120mm / 2 x 140mm, Top 2 x 120mm / 2 x 140mm, Rear 1 x 120mm
Included Fan(s): Front 2 x 120mm (Black), Rear 1 x 120mm (Black)
Radiator Support: Front 120mm/ 240mm/ 280mm, Top 120mm / 240mm, Rear 120mm
I/O ports: 1 x headphone, 1 x MIC, 1 x USB 2.0, 2 x USB 3.0, reset button, power button

Fan
Dimensions: 120 x 120 x 25 mm
Bearing Type: Plain Bearing
Max. Fan speed: 1,100 RPM �15%
Maximum airflow: 61.16 m3/h (36 CFM)
Air pressure: 1.2mm H2O
Noise level: 24.4 dB(A)
Lifespan: 40,000 hours

Cooling



Front fans diameters supported



120


Front fans installed



2x 120 mm


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of top fans supported (max)



2


Rear fans diameters supported



120


Rear fans installed



1x 120 mm


Top fans diameters supported



140


Design



Form factor



Mini Tower


Material



Plastic, Steel, Tempered glass


Maximum CPU cooler height



16 cm


Maximum graphics card length



33 cm


Maximum PSU length



21 cm


Number of 2.5" bays



3


On/off button



Yes


Product colour



Black


Reset button



Yes


Side window



Yes


Supported motherboard form factors



micro ATX, Mini-ITX


Tempered glass panel(s)



Yes


Type



PC


Package dimensions



Gross Weight (Package, kg)



6.5 kg


Product dimensions



Net Weight (Product, kg)



5 kg


Product Depth



40.9 cm


Product Height



42.6 cm


Product Width



22.1 cm


Vendor information



Brand Name


Zalman


Warranty



1 Year(s)
