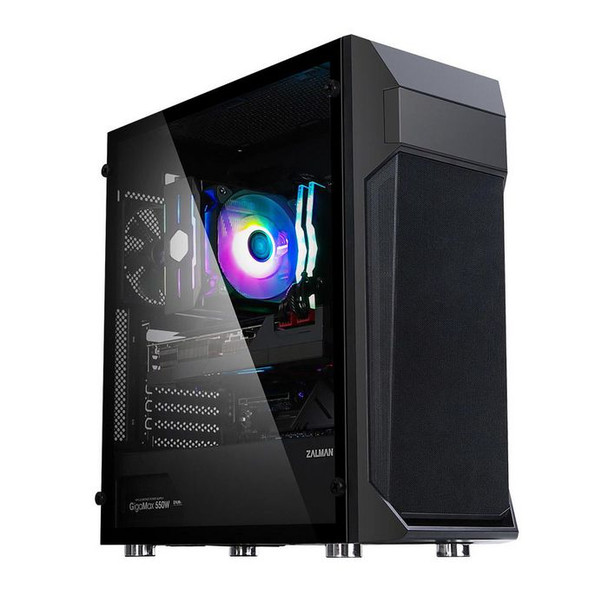

Zalman Z1 PLUS Atx Mid Tower Pc Case Z1 PLUS

Zalman Z1 Plus | ATX Middle Tower
Key Features
- Premium PC Gaming Case
- Supports up to 280mm liquid AIO cooler
- Mesh design at the front for maximum ventilation
- Edgeless premium tempered glass side panel
- Pre-installed 120mm black fans (x3)
- Supports 1 x 5.25 ODD

High Quality Metal Mesh Design
Front mesh panel and pre-installed fans (3x) provide optimal airflow with a modern look.

Premium PC Gaming Case
Zalman's cool idea for visual enhancement. It will save you the trouble of maintaining the ODD cover. Supports 1 x 5.25 ODD.

Edgeless premium tempered glass side panel
A rimless premium tempered glass side panel provides a panoramic view of your system. The user-friendly glass panel provides easy access to the interior by simply unscrewing 4 hand screws.

Easy-access design on the top I/O ports
Power supply, HDD/Power LED, Reset button, Headphone jack, Microphone jack, USB 3.0 port*2, USB 2.0 port, LED button.

Top Magnetic Dust Filter
Protects your components and allows unobstructed airflow through dust filtration.

Soil dust filter
Protects your power supply from dust build-up.

Maximum airflow and ventilation
3 pre-installed 120mm fans (front x 2, rear x 1) for fast heat dissipation from the case (supports up to 8 fans).

Professional cable management
Enough space to easily route your large cables.

Motherboard Capacity
ATX / mATX / Mini ITX.

Excellent extensibility and convenience
Tool-less design makes it easy to remove any part without tools for your convenience.

Radiator Configuration
Front: 120mm / 240mm
Rear: 120mm
Top: 120mm/240mm/280mm

Support from fans
Front: 3 x 120mm / 2 x 120mm (with ODD)
Rear: 1 x 120mm
Top: 2 x 120mm / 2 x 140mm
Bottom: 2 x 120 mm

Pre-installed fan
Front: 2 x 120mm
Rear: 1 x 120mm

Maximum airflow and ventilation
3 pre-installed 120mm black fans (front x 2, rear x 1) and optimized ventilation for fast heat dissipation in the case (supports up to 8 fans).

Specifications
Model: Z1 PLUS
Materials: steel, plastic, tempered glass
Weight: 5 kg
Dimensions (D x W x H): 463 x 209 x 485 mm
Case Form Factor: ATX Mid-Tower
Motherboard Support: ATX / mATX / Mini-ITX
Fan Support: Front 3 x 120mm / 2 x 120mm (with ODD), Top 2 x 120mm / 2 x 140mm, Rear, 1 x 120mm, Bottom 2 x 120mm
Fan(s) Included: Front 2 x 120 mm, Rear 1 x 120 mm
Drive bays: 1 x 5.25(ODD), 2 x 3.5, 3 x 2.5
Radiator Support: Front 120mm/240mm, Top 120mm/240mm/280mm, Rear 120mm
Maximum VGA length: 385 mm
Maximum CPU cooler height: 163 mm
Maximum PSU Length: 190mm
PCI Expansion Slots: 7pcs
I/O ports: 1 x headphone jack, 1 x microphone, 2 x USB3.0, 1 x USB2.0, power button, reset button, LED button

Fan
Dimensions: 120 x 120 x 25 mm
Bearing Type: Hydro Bearing
Maximum fan speed: 1200 rpm ? 15%
Maximum airflow: 35.34 CFM
Noise level: 23.2 dB(A)
Lifespan: 40,000 hours

Cooling



Bottom fans diameters supported



120


Front fans diameters supported



120


Front fans installed



2x 120 mm


Front radiator sizes supported



120, 240


Number of bottom fans supported (max)



2


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Rear fans diameters supported



120


Rear fans installed



1x 120 mm


Rear radiator sizes supported



120


Top fans diameters supported



120, 140


Top radiator sizes supported



120, 240, 280


Design



Anti-dust filter



Yes


Form factor



Midi Tower


Maximum CPU cooler height



16.3 cm


Maximum graphics card length



38.5 cm


Maximum PSU length



19 cm


Number of 2.5" bays



3


Number of 3.5" bays



2


Number of 5.25" bays



1


On/off button



Yes


Product colour



Black


Reset button



Yes


RGB control button



Yes


Side window



Yes


Supported motherboard form factors



ATX, micro ATX, Mini-ATX


Tempered glass panel(s)



Yes


Type



PC


Package dimensions



Gross Weight (Package, kg)



6.5 kg


Ports & interfaces



USB 2.0 ports quantity



1


Product dimensions



Net Weight (Product, kg)



5 kg


Product Depth



46.3 cm


Product Height



48.5 cm


Product Width



20.9 cm


Vendor information



Brand Name


Zalman


Warranty



1 Year(s)
