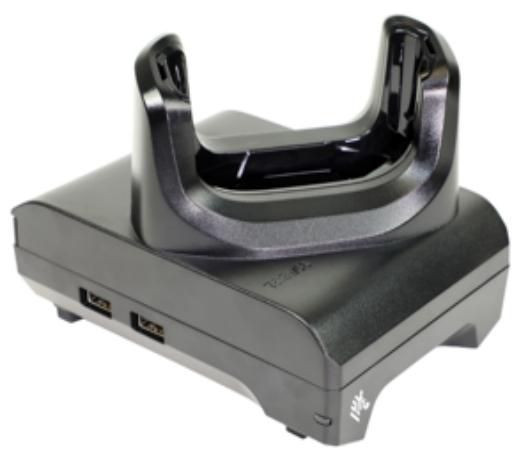

Zebra CRD-TC5X-1SWS-01 TC5X WORKSTATION DOCKING CRD-TC5X-1SWS-01

Workstation Docking Cradle Kit

- An enhanced single-slot charging cradle allowing users to use the TC5X as a workstation or kiosk.
- Two USB ports are located on both sides of cradle. One port provides 1.5A current. The remaining three provide .5A current.
- Also includes Kensington port to secure the cradle to a desk location. Cradle can also be screwed down to desk/counter.
- Will charge TC5x only. Does not charge spare battery.
- Will charge battery in TC5x from 0-90% in as little as 2.5 hours
- Compatible with TC5x units with hand strap, Rugged Boot, or Pistol Grip Handle attached.
- Includes cradle insert/shim that requires removal when using a TC5x unit with the Rugged Boot/Exoskeleton or Pistol Grip Handle attached.
- Connects to rugged charge/communication connector on bottom of TC5x.
- TC5X may require additional drivers or updated BSP - see PMB 10207 for details.
- Kit includes Workstation Docking Cradle (CRD-TC5X-1SWS1-01), Power Supply (PWR-BGA12V50W0WW) and DC Line Cord (CBL-DC-388A1-01).

Logistics data



Harmonized System (HS) code



84719000


Network



Ethernet LAN



Yes


Package dimensions (verified)



Depth Verified



21.8 cm


Gross Weight Verified



1.18 kg


Height Verified



17.7 cm


Width Verified



26.8 cm


Packaging content



Cables included



DC


Performance



Basic device type



PDA


Brand compatibility



Zebra


Cable lock slot



Yes


Compatibility



TC5x


Product colour



Black


Ports & interfaces



Audio output



No


Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


HDMI



Yes


HDMI connector type



Full-size


USB 2.0 ports quantity



4


Power



DC output current



1.5 A


External power adapter



Yes


Power source type



DC


Product dimensions



Net Weight (Product, kg)



1 kg


Technical details



Harmonized System (HS) code



84719000


Vendor information



Brand Name


Zebra
