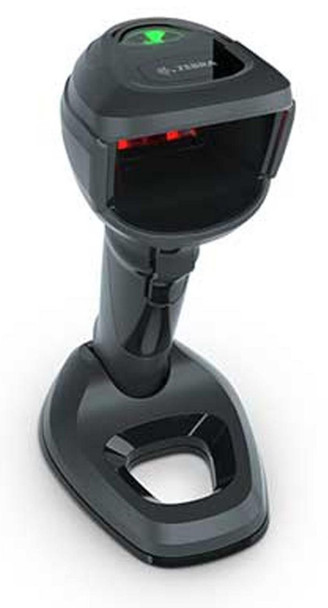

Zebra DS9908-SR00004ZZWW DS9908. DS9908-SR00004ZZWW

IMPROVE WORKFLOW EFFICIENCY AND ACCURACY WITH THE HYBRID PRESENTATION IMAGER BUILT FOR THE LAB
Barcodes found in the lab can be challenging for a general purpose scanner. That�s why the DS9900 Series is purpose-built for lab environments, offering unparalleled productivity and ease of use. You get first-time, every time capture of small, high density, curved and color-coded barcodes. A one-of-a-kind hybrid design provides seamless switching between handheld and hands-free scanning, and an optional RFID model and unrivaled management tools drive workflow efficiency to a new level.

SCAN IT ALL
High density focus and white illumination LEDs easily read dense barcodes on microscope slides, curved barcodes on medicine bottles and blood vials, and barcodes on color-coded specimen trays and biopsy cassettes. An 800 MHz microprocessor, megapixel sensor and exclusive PRZM Intelligent Imaging technology deliver unparalleled scanning performance.

TWO SCANNERS IN ONE
While other products are handheld scanners retrofitted with a base, our award-winning Industrial Design team created the DS9900 Series for handheld and hands-free use. The result? Fast, seamless switching between modes. A sturdy, one-piece design with a small footprint. The right ergonomics. And a scan range that automatically adjusts as needed.

UNRIVALED MANAGEABILITY
Complimentary industry-best tools make it easier than ever to remotely configure scanners, upgrade firmware and format data for your application. Right out of the box, the scanner is configured for common applications and auto-host detect cables automatically select the right host interface � just plug in the scanner and you�re ready to go.

Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



Built-in display



No


Built-in processor



Yes


Image formats supported



BMP, JPEG, TIFF


International Protection (IP) code



IP52


LED indicators



Y, Yes


Processor frequency



800 MHz


Product colour



Black


Ports & interfaces



Connectivity technology



Wired


Standard interfaces



RS-485


Power



Input voltage



5 V


Product dimensions



Net Weight (Product, kg)



0.454 kg


Product Depth



22.098 cm


Product Height



9.906 cm


Product Width



11.684 cm


Scanning



2D (matrix & stacked) barcodes supported



Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39


Linear (1D) barcodes supported



Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C.


Optical sensor resolution (W x H)



1280 x 800 Pixels


Scanner type



1D/2D


Type



Handheld bar code reader


Wavelength



528 nm


Technical details



Harmonized System (HS) code



84716070


Vendor information



Brand Name


Zebra


Warranty



3 Year(s)
