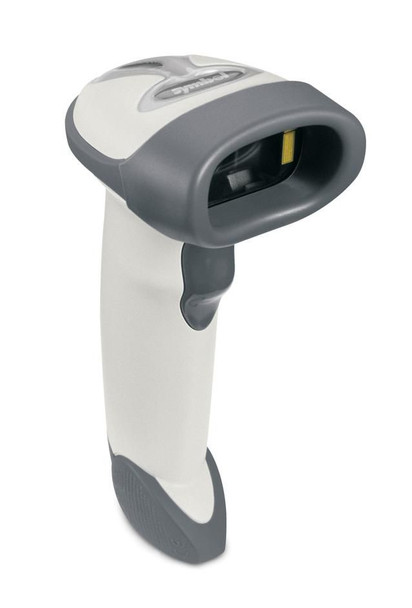

Zebra LS2208-SR20001R LS2208. RS232. KBW. USB LS2208-SR20001R

The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range —from near-contact to 17 inches — makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems

Durable, single-board construction
Meets stringent 5-ft drop tests.

Scratch-resistant tempered glass exit window
Is designed for continuous use.

Accurate first-time capture of 1D bar codes
Increased productivity, resulting in shorter check-out lines and better customer service.

Wide working range
Delivers optimal performance from contact to 17 in (43 cm).

Multiple on-board interfaces
Simplify installation and integration and ensures future compatibility.

Plug-and-play, with universal cable
Means rapid deployment, with a single cable connecting to any computing environment.

Intuitive design
Minimizes setup and training time.

Ergonomic, lightweight design
Reduces user fatigue with sleek, balanced form for maximum comfort and productivity.

Hands-free Intellistand
Enables presentation scanning and easy switching between hands-free and handheld modes.

Advanced Data Formatting (ADF)
Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.

Design



Product colour



White


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 °C


Storage temperature (T-T)



-40 - 70 °C


Other features



Dimensions (WxDxH)



63 x 84 x 152 mm


Electromagnetic emissions



FCC Part 15 Class B, ICES 003 Class B


Light source



650nm


Safety



UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1


Package dimensions



Gross Weight (Package, kg)



0.44 kg


Performance



Product colour



White


Ports & interfaces



Standard interfaces



RS-485, USB, Keyboard wedge, RS-232


Power



Input voltage



5 V


Power consumption



130 mA


Product dimensions



Net Weight (Product, kg)



0.236 kg


Product Depth



17.78 cm


Product Height



7.62 cm


Product Width



12.7 cm


Scanning



Decoding standards



UPC/EAN UPC/EAN + Supplementals UCC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2/5 Discrete 2/5 Code 93 MSI Code 11 IATA GS1 DataBar Chinese 2/5


Pitch reading angle



-65 - 65 °


Scan speed



100 sec/page


Sensor type



Laser


Tilt reading angle



-30 - 30 °


Yaw reading angle



-60 - 60 °


Technical details



Harmonized System (HS) code



84716070


Vendor information



Brand Name


Zebra


Warranty



5 Year(s)
