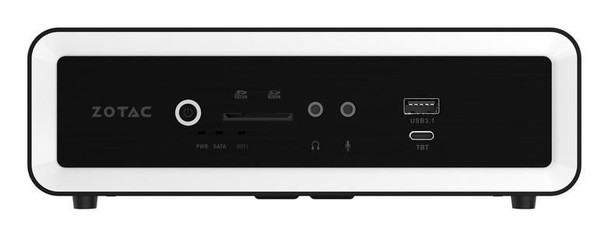

Zotac ZBOX-CI629NANO-BE ZBOX CI629 nano ZBOX-CI629NANO-BE

MULTI-TASK. EMAIL. DOCS. FASTER
The all-new compact ZBOX C Series nano is a leader in silent computing performance. Its rigid enclosure is patterned with nature’s strongest natural structure, further enhanced by 270 degrees of open ventilation for maximum breathability and operability.

DEDICATED
The all-new ZBOX C Series nano Mini PC is an efficiently fast multi-core, multi-threaded multitasker that’s dedicated to help get work done.

EFFICIENT AND RELIABLE
A system that takes up very little space and it’s designed with no moving parts* to remove wear and tear inefficiencies to increase overall system reliability, longevity, and return on investment. At 1.8 liters small, its energy consumption is just as small and efficient, sipping up to 30W under load for additional long term cost savings

Flexible
The ZBOX C Series nano features a built-in VESA mount design to allow for more flexible system placement. The overall small system takes very little desk space, but it also has the potential to take up zero if mounted onto a wall, under the desk, or even behind the display.

HAS GREAT COMMUNICATION
The ZBOX C Series nano’s compact footprint packs in a plethora of built-in fast connectivity which include: WiFi 6, Bluetooth 5.2, Gigabit LAN, and 2.5Gbps LAN. It can also provide great visibility with the ability to support up to 3 displays with HDMI 2.0b, DisplayPort 1.4, and DP via Thunderbolt. The available Thunderbolt 4, USB 3.1, and SDXC Card Reader allows for easy file transfers between devices.

CAN TAKE ON MORE
The ZBOX C Series nano can take on up to 64GB of fast DDR5 5200/4800 MHz Memory, a 2.5” HDD/SSD drive, and an M.2 NVMe PCIe 4.0 x4 SSD with little effort.

Audio



Built-in speaker(s)



No


Design



Cable lock slot



Yes


Cable lock slot type



Kensington


Chassis type



1.8L sized PC


Cooling type



Passive


LED indicators



HDD, Power, Wi-Fi


On/off switch



Yes


Product colour



Black, White


Product type



Workstation barebone


VESA mounting



Yes


Expansion slots



PCI-X slots



4


Graphics



Graphics card family



Intel


Maximum resolution



4096 x 2160 Pixels


Number of displays supported



3


On-board graphics card



Yes


On-board graphics card model



Intel® UHD Graphics


Memory



Maximum internal memory



64 GB


Memory slots type



SO-DIMM


Number of memory slots



2


Supported memory clock speeds



4800, 5200


Supported memory types



DDR5-SDRAM


Network



Bluetooth



Yes


Bluetooth version



5.2


Ethernet LAN



Yes


Top Wi-Fi standard



Wi-Fi 6 (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



Wi-Fi 6 (802.11ax)


Package dimensions



Gross Weight (Package, kg)



3 kg


Packaging content



AC adapter included



Yes


Power cord included



Yes


Quick start guide



Yes


Performance



Audio output channels



8.0 channels


Motherboard chipset



Intel SoC


Windows operating systems supported



Windows 11


Ports & interfaces



DisplayPort version



1.4


DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



2


HDMI ports quantity



1


HDMI version



2.0b


Thunderbolt 4 ports quantity



1


USB 2.0 ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


Power



Power supply



65 Watt


Power supply type



External AC adapter


Processor



Built-in processor



Yes


Efficient cores



4


Efficient-core boost frequency



3.3 GHz


Performance cores



2


Performance-core boost frequency



4.5 GHz


Processor cache



10 MB


Processor cores



6


Processor family



Intel® Core™ i3


Processor frequency



1.2 GHz


Processor generation



Intel Core i3-13xxx


Processor manufacturer



Intel


Processor model



i3-1315U


Processor threads



8


Thermal Design Power (TDP)



55 Watt


Product dimensions



Net Weight (Product, kg)



2.11 kg


Product Depth



12.9 cm


Product Height



6.8 cm


Product Width



20.4 cm


Storage



Card reader integrated



Yes


Compatible memory cards



SD, SDHC, SDXC


Number of storage drives supported



2


Storage drive interface



PCI Express, Serial ATA


Storage drive sizes supported



2.5, M.2


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Zotac


Warranty



1 Year(s)
